Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials

Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials
Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials

Large Image :  Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials

Product Details:
Place of Origin: Anhui, China
Brand Name: Big-color
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $13,800.00/sets 1-1 sets
Packaging Details: The normal package is stronger wooden box with metal structure inside(packaging size: 2300*1400*1500mm). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to c
Supply Ability: 50 Set/Sets per Month
Contact Now

Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials

Description
Type: Inkjet Printer Print Dimension: 1800mm
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C Condition: New
Plate Type: Flatbed Printer Use: Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer
Automatic Grade: Automatic Color & Page: Multicolor
Voltage: 220V/110V Dimensions(L*W*H): 3.3*1.6*1.50 M
Weight: 780 KG Warranty: 1 Year
Ink Type: Uv Ink Key Selling Points: High Productivity
Marketing Type: New Product 2022 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 13 Months
Core Components: Motor, Other, Gear, Gearbox, Engine Product Name: ZT Hybrid Printer
Application: Flat Items And Rotary Items Ink Type: UV Curable Ink/UV Hard Ink/UV Soft Ink
Printing Material: Metal,ceramic,acrylic Board,wood,leather And So On Color: CMYK+White+Varnish
Printing Size: 60cm*190cm Operating System: Win7/win10
Feature: Can Printer On Flatbed Metarial And Cylinder After Warranty Service: Online Support
RIP Software: Maintop(main) Photoprint(optional) Port: Shanghai/Yiwu/Ningbo/Guangzhou

Model No
Print head
Printing area
Printing height
Speed
Color
A3-UV-single head
1 pcs Epson DX8
40*30cm
15cm
120sec/page
(A3)
CMYK+W
A3-UV/DTG-double head
2 pcs Epson DX8
40*30cm
15cm
80sec/page
(A3)
CMYK+W+V
A3-DTG-single head
1 pcs Epson DX7
40*30cm
15cm
120sec/page
(A3)
CMYK+W
A2-UV/DTG-doube head
2 pcs Epson DX8
40*60cm
15cm
60sec/page
(A3)
CMYK+W+V
9060-dx8
3 pcs Epson DX8
100*70cm
8cm
4.5m²/h
CMYK+W+V
9060-4720
3 pcs Epson 4720
100*70cm
8cm
10m²/h
CMYK+W+V
1610-dx8
3 x Epson DX8
160*100cm
25cm
6.5m²/h
CMYK+W+V
1610-4720
3 x Epson 4720
160*100cm
25cm
12m²/h
CMYK+W+V
2513-dx8
3 pcs Epson DX8
250*130cm
8cm
6.5m²/h
CMYK+W+V
2513-4720
3 pcs Epson 4720
250*130cm
8cm
12m²/h
CMYK+W+V
Product Description



Product Application

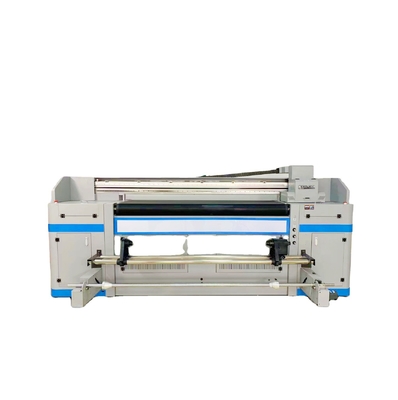

Big Color Hybrid printer uv or eco-solvent printer by 1.8m type. it not only can print roller type material but also board type material.

SPECIFICATIONS FOR ZT1900B



Product Name
uv hybrid printer


Model
ZT1900- hybrid


Belt size
1.8m*40cm(5.9ft*1.31ft)


Printer head
3 pcs 3200U1 head


Speed
(based on c+w+v mode)
13 m2/h(3 pass)
10 m2/h(4 pass)
  7 m2/h(6 pass)


Maximum Resolution
300*4320 dpi(variable dot printing mode)


Max printing heigh
50mm


Printing solution:
1. Color +White+Color ( For transparent material mirror printing)
2. White+Color+varnish


Material Type
Leather, Hyaloid membrane, KT board, Transparent film and so on.


Connect port
USB3.0 High speed transfer port


Machine Dimension
3.3*1.6*1.50 m(L*W*H)


Machine weight
780KG


Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 0
Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 1
System:
Much more professional and more stable than desktop modified printer. Control the color freely.
Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 2
150mm stronger CNC aluminum beam
CNC alumimum beam is good material for good printing.The main function is to ensure the stability of the printing process

Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 3
Close and Soft belt
It won't have any banding on the printing material during printing.
Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 4

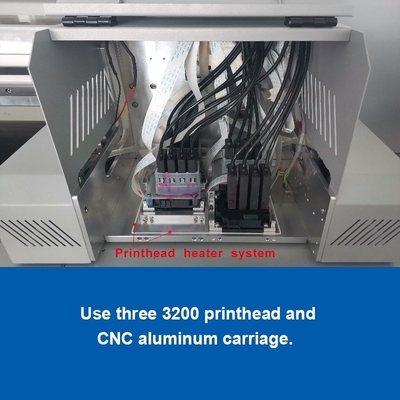

Three I3200 printheads with head heater
Aluminum CNC carriage with head heater, it can make sure the printhead can work even in cold winter.
Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 5
Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 6

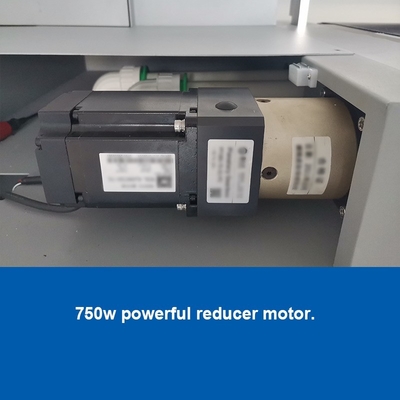

750W powerful motor
Make sure the stepping move smoothly and with high accuracy
Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 7
Air shaft material feeding and taking system
Make sure the all kinds of material moving smoothly and no wrinkle.
Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 8
Ink Alarming system & Ink Stiring system:
White ink stirring system and cycling system, make sure there is no sediment during vacation or weekend. extend the head working life.
Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 9
Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 10

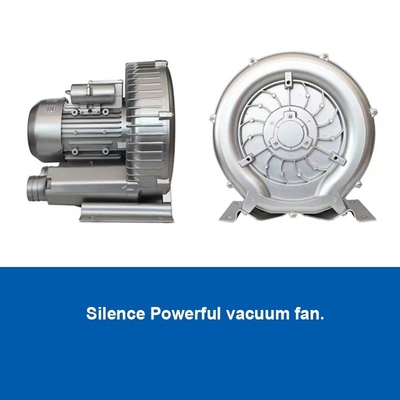

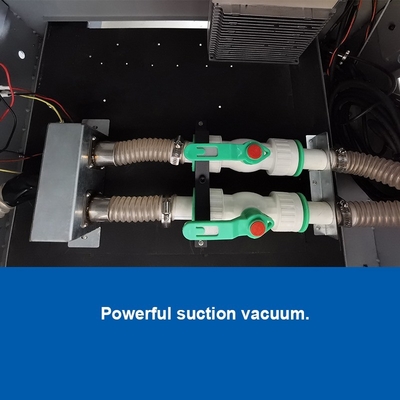

Powerful suction vacuum

1500W big vacuum for suction. it can also support 2pcs vacuum if needed. It can suction material flat enough
Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 11
3pcs Big Water cooling LED UV Lamp.

Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 12





Our Big color have focus on printer research manufacture for more than 12 years, we also work on OEM & ODM printing machine. so we could also give you best suggestion and solution for your printing request if you needed.



CE Certifications
Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 13


Our Service
Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 14



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 15



After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Large Format UV Hybrid Printer for Roll to Roll Leather and Other Materials 16
FAQ
1. Do you offer printing free samples based my design?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount
when you machine order less than 4 sets. if more than 5 sets or need us design for you, the date can be negotiation.

3. What’s your payment method?
Payment method is T/T , Western Union, Paypal.

4. If I have some technical problem, how can you help us to solve it?
Firstly, we have lots of teaching video to help you install machine . and then we have engineer to use the Teamviewer and Anydesk to help you finish . Most of engineer have been in our factory for more than 5 years. we are sure you could get best reliable service.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request. Also for OEM model.

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
