Product Details:
|
Print Dimension: | 300mm, A3 | Condition: | New |
---|---|---|---|
Automatic Grade: | Automatic | Color & Page: | Multicolor |
Dimensions(L*W*H): | 1.85*0.99*1.15m/72.8*38.9*45.2in | Weight: | 190 KG |
Warranty: | 13months | Ink Type: | Pigment Ink |
Key Selling Points: | Easy To Operate | Machinery Test Report: | Provided |
Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 13months |
Product Name: | ZT30 DTF Printer | Printing Size: | A3/30cm |
Ink: | CMYK+W | Print Speed: | 5sqm/h. |
Print Head: | 2 Pecs XP600 | Resolution: | 720*4320 Dpi |
RIP Software: | Maintop/Photoprint | Operating System: | Windows 7/ 8 / 10 |
Printing Content: | PET Film | Type: | Inkjet Printer |
Applicable Industries: | Garment Shops, Printing Shops, Advertising Company | Plate Type: | DTF Printer |
Use: | Label Printer, Card Printer, Cloths Printer | Voltage: | 220v |
Marketing Type: | New Product 2022 | Core Components: | Motor, Engine, Board System |
Port: | Shang Hai |

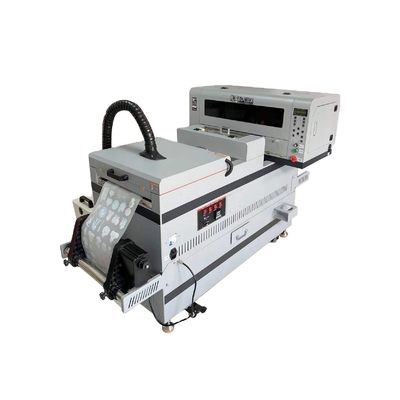

☆Big Color small size DTF printer have 2 sizes for 70cm &30cm. we can use XP600 head or 3200 head. 2 heads model or 1 head model optional for you. It can fit for different working environment.
☆It is a new tech, then how it work:
1. Design picture by the PS or Cdr software.
2. Printer printing picture by color +white on our PET film.
3. Powder drop on the picture and goes through the heater machine.
4. The powder adhesive onto the picture by high temperature.
5. Cut of the finish film and then transfer them onto your fabric by heater pressure machine
☆ Main Features
1. Not only can use cloth, it can also transfer onto bag, shoes, notebook, fur and other kinds of fabric material.
2. Automatic white ink stirring system and circuit system, could extent the head working life..
3. All-in-one machine body , printer+ shaker together, it can make sure the machine more stable move easily .
4. We could support you all need spare parts and material. also the air filter. then make sure you get machine can work directly
5. If you didn't know how to import the goods, don't worry, we will help you arrange all shipping issues.
SPECIFICATIONS FOR ZT-6090 | ||||||
Product Name | ZT30 DTF Printer | |||||
Model | ZT3006 | |||||
Printer head | 2 pc XP600 head | |||||
Speed | 5m2/h(Production mode) / 4.5m2/h(Precision mode) / 4m2/h(High precision mode) | |||||
Maximum Resolution | 720*4320 dpi | |||||
Ink | 4 color +white | |||||
Printing Type | Pigment ink for PET film | |||||
Machine Dimension | 185cm(L)*99cm(W)*115cm(H) | |||||
packing size | 166cm(L)*128cm(W)*94cm(H)=2.0CBM |
Model No | Print head | Printing area | Speed | Color |
ZT3006-2H | 2 pcs Epson XP600 | 300mm | 5m²/h | CMYK+W |
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
