High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum

High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum

Large Image :  High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum

Product Details:
Place of Origin: Anhui, China
Brand Name: Big Color
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $4,000.00/sets 1-4 sets
Packaging Details: The normal package is stronger wooden box with metal structure inside(packaging size: 2340*1400*1500mm). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to c
Supply Ability: 20 Set/Sets per Month
Contact Now

High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum

Description
Type: Inkjet Printer Print Dimension: 400mm*600mm
Applicable Industries: Garment Shops, Printing Shops, Advertising Company Condition: New
Plate Type: Dtg Printer Use: Paper Printer, Card Printer, Tube Printer
Automatic Grade: Automatic Color & Page: Multicolor
Voltage: 220V Dimensions(L*W*H): 97*101*56cm/38*39.7*22inch
Weight: 90 KG Warranty: 14 Months
Ink Type: UV Ink Key Selling Points: High Productivity
Marketing Type: Hot Product 2022 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 14 Months
Core Components: Motor, Engine, Board System Print Head: 2 Pieces DX8
Print Speed: 120sec/page Print Color: W+KCMY+ Varnish (can
Print Height: 15cm/5.9 Inches Printing Material: Glass, Tile, Acrylic, PP, Metal, Wood, Stone, Rotary Material
Picture Mode: PSD/TIFF/BMP/EPS/JPG Flate Type: Flatbed Printer
RIP Software: Ultra Print/ Maintop/Photoprint Product Keywords: A2 Uv Led Printer
Operating System: WinXP/Win7/Win10 Port: Shanghai

Model No
Print head
Printing area
Printing height
Speed
Color
A3-UV-single head
1 pcs Epson DX8
40*30cm
15cm
120sec/page
(A3)
CMYK+W
A3-UV-double head
2 pcs Epson DX8
40*30cm
15cm
80sec/page
(A3)
CMYK+W+V
A3-DTG-single head
1 pcs Epson DX7
40*30cm
15cm
120sec/page
(A3)
CMYK+W
A2-UV-doube head
2 pcs Epson DX8
40*60cm
15cm
60sec/page
(A3)
CMYK+W+V
9060-dx8
3 pcs Epson DX8
100*70cm
8cm
4.5m²/h
CMYK+W+V
9060-3200
3 pcs Epson 3200
100*70cm
8cm
10m²/h
CMYK+W+V
1610-dx8
3 x Epson DX8
160*100cm
25cm
6.5m²/h
CMYK+W+V
1610-3200
3x Epson 3200
160*100cm
25cm
12m²/h
CMYK+W+V
2513-dx8
3 pcs Epson DX8
250*130cm
8cm
6.5m²/h
CMYK+W+V
2513-3200
3 pcs Epson 3200
250*130cm
8cm
12m²/h
CMYK+W+V
Product Description

Product Application

Big Color small size uv printer can print on rotary and flat material by one printer,It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

SPECIFICATIONS FOR ZT-4060
Product Name
a2 uv flatbed printer
Model
ZT4060
Printer head
2 pc tx800 /3200
Speed
A3: 60seconds.       A4: 70 seconds
Maximum Resolution
720*4320 dpi
Ink
K C M Y W V  4 COLOR +WHITE+VARNISH
Printing Type
Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Max Printing heigh
15 cm for standared   (20cm for special order)
Rip software
Maintop 6 uv version for standared & photoprint uv 12 for optional
Machine Dimension
1.14*1.09*0.76m
UV lamp
2 UV LED LAMP For water coolling

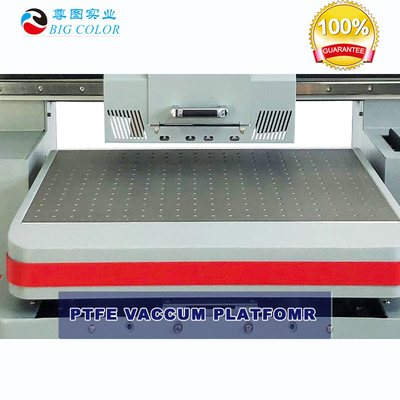

High level mode 4060 uv printer,vaccum flatbed(optional）
Click on the image and then you can watch the live video
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 0
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 1
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 2
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 3
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 4
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 5
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 6
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 7
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 8
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 9
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 10
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 11
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 12
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 13
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 14

Famous HIWIN brand guide rail way

Famous supplier brand in the industry, strong guide rail, high precision

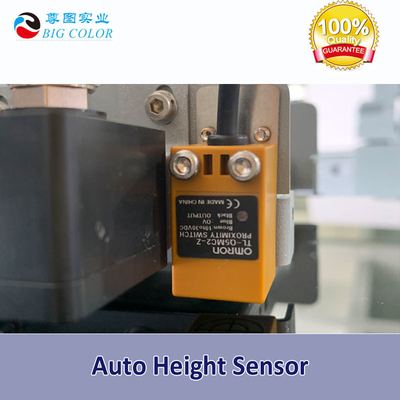

auto height sensor to max 150mm

Intelligent control of printhead printing height, more accurate and convenient.Other sellers use manual controls

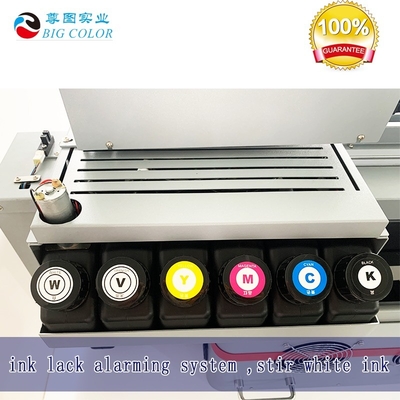

Ink system:stir and alarm

Lack of ink when the alarm sound, timely add ink to prevent printing interruption
Stirring system, can better protect the printheads, prolong the service life
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 15

multi-functional

1.head heat:used for cold weather
2.emergency stop :
3.rotary-flatbed switch
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 16

height 150mm

Free adjustment of height makes the machine a wide range of applications and can print high materials
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 17

wisible work window.

Machine use clamshell model.User can install printhead easily

Main Features

1) White+color print at one time.

2) Hiwin liner and silence chain

3) Water cooling uv led lamp

4) Maintop or photoprint rip software

5) Auto height setting sensor.

6) White ink stirting & ink alarming system

Certifications
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 18
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 19
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 20
Sample Display
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 21
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 22
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 23
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 24
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 25
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 26
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 27
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 28
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 29
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 30
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 31
Our Exhibition
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 32
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 33
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 34
Our Service
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 35

Pre-Sales Service

* Inquiry and consulting support.


* Sample testing support.

* View our Factory.
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 36

After-Sales Service

* Training how to instal the machine, training how to use the machine.


* Engineers available to service machinery overseas.
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 37
Packing & Delivery
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 38
Packaging
Size
1.14*1.09*0.76m=0.95



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
High Productivity 6 Color UV 4060 Printer for A2 Printing on Bottle Cup Wood Aluminum 39
Delivery
Delivery Time
7 days after payment
Port
Shanghai port or as customer's request.
FAQ
1. Do you offer free printing samples?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount .

3. What’s your payment method?
Payment method is T/T , Western Union, paypal.

4. If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly,will send an
overseas engineer service to you.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken
parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
