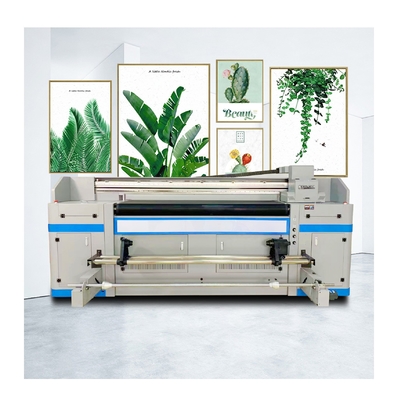

UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads

UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads

Large Image :  UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads

Product Details:
Place of Origin: Anhui, China
Brand Name: Big color
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $12,300.00/sets 1-4 sets
Packaging Details: The normal package is stronger wooden box with metal structure inside(packaging size: 2.92*1.82*1.22M=6.48CBM. If export to european countries,the wooden box will be fumigated.If container is too tight,we will use PE film for packing or pack it according t
Supply Ability: 100 Set/Sets per Month
Contact Now
-->

UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads

Description
Type: Inkjet Printer Print Dimension: 1800*600mm
Applicable Industries: Garment Shops, Printing Shops, Advertising Company Condition: New
Plate Type: Roll-to-Roll Printer Use: Label Printer, Card Printer, Tube Printer, Leather
Automatic Grade: Automatic Color & Page: Multicolor
Voltage: 220V Dimensions(L*W*H): 1.5*1.6*1.38m
Weight: 880 KG Warranty: 13 Month
Ink Type: UV Ink Key Selling Points: Multi Color
Marketing Type: New Product 2022 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 13 Month
Core Components: Motor, Engine, Board System Product Name: ZT1900 Hybrid Printer
Print Head: 3 Pieces Tx800/4720/3200 Print Speed: 7.5/5.5/4/5 M2/h
Resolution: 720*4320 Dpi Printing Size: 1800*600mm
Print Ink: Uv Ink Ink Color: Pre-coating CMYK+W+K
RIP Software: Maintop(main) Photoprint(optional) Interface: USB 3.0
Printing Content: Leather, PET Film, Board, Latex Port: Shanghai/Yiwu/Ningbo/GUAGNDONG

Product Description



Product Application

Big Color Hybrid printer uv or eco-solvent printer by 1.8m type. it not only can print roller type material but also board type material.

SPECIFICATIONS FOR ZT1900B



Product Name
uv hybrid printer


Model
ZT1900- hybrid


Belt size
1.8m*40cm(5.9ft*1.31ft)


Printer head
3 pcs 3200U1 head


Speed
(based on c+w+v mode)
13 m2/h(3 pass)
10 m2/h(4 pass)
  7 m2/h(6 pass)


Maximum Resolution
300*4320 dpi(variable dot printing mode)


Max printing heigh
50mm


Printing solution:
1. Color +White+Color ( For transparent material mirror printing)
2. White+Color+varnish


Material Type
Leather, Hyaloid membrane, KT board, Transparent film and so on.


Connect port
USB3.0 High speed transfer port


Machine Dimension
3.3*1.6*1.50 m(L*W*H)


Machine weight
780KG


UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 0
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 1
System:
Much more professional and more stable than desktop modified printer. Control the color freely.
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 2

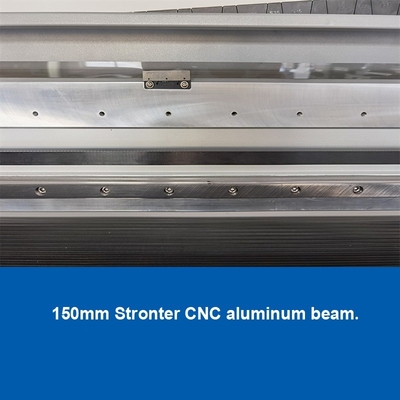

150mm stronger CNC aluminum beam
CNC alumimum beam is good material for good printing.The main function is to ensure the stability of the printing process

UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 3
Close and Soft belt
It won't have any banding on the printing material during printing.
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 4

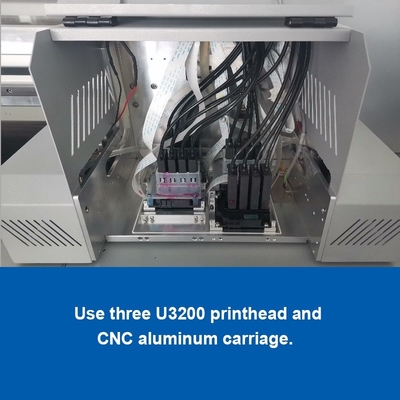

Three I3200 printheads with head heater
Aluminum CNC carriage with head heater, it can make sure the printhead can work even in cold winter.
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 5
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 6

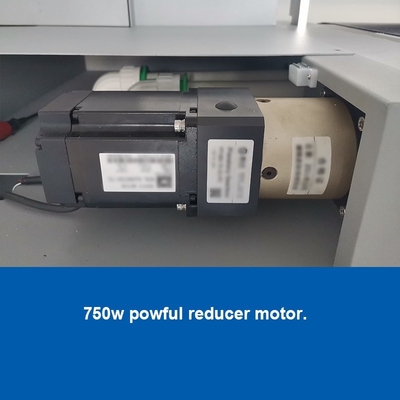

750W powerful motor
Make sure the stepping move smoothly and with high accuracy
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 7
Air shaft material feeding and taking system
Make sure the all kinds of material moving smoothly and no wrinkle.
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 8

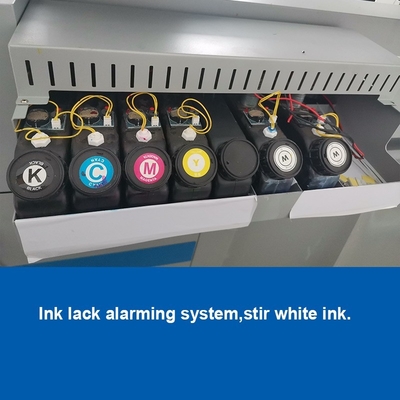

Ink Alarming system & Ink Stiring system:
White ink stirring system and cycling system even when machine power off, make sure there is no sediment during vacation or weekend. extend the head working life.
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 9
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 10

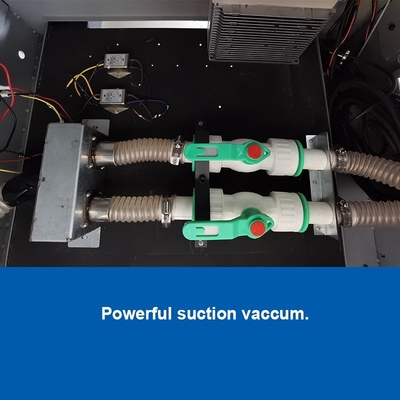

Powerful suction vacuum

1500W big vacuum for suction. it can also support 2pcs vacuum if needed. It can suction material flat enough
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 11
3pcs Big Water cooling LED UV Lamp.

UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 12





Our Big color have focus on printer research manufacture for more than 12 years, we also work on OEM & ODM printing machine. so we could also give you best suggestion and solution for your printing request if you needed.



CE Certifications
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 13


Our Service
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 14



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 15



After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 16
FAQ
1. Do you offer printing free samples based my design?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount
when you machine order less than 4 sets. if more than 5 sets or need us design for you, the date can be negotiation.

3. What’s your payment method?
Payment method is T/T , Western Union, Paypal.

4. If I have some technical problem, how can you help us to solve it?
Firstly, we have lots of teaching video to help you install machine . and then we have engineer to use the Teamviewer and Anydesk to help you finish . Most of engineer have been in our factory for more than 5 years. we are sure you could get best reliable service.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request. Also for OEM model.

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 17
CE Certifications
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 13


Sample







leather

sheath
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 19
Our Service
UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 14



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 15



After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

UV Hybrid Printer 1.9m 6ft Roll to Roll ZT1900 with Multi Color Print Heads 16
