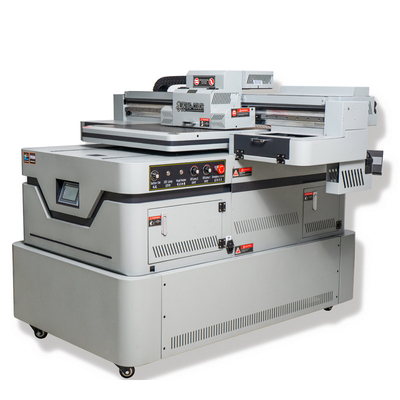

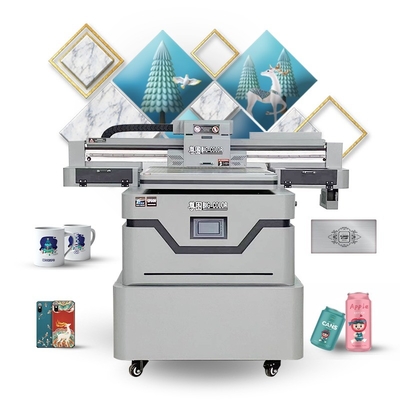

Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment

Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment

Large Image :  Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment

Product Details:
Place of Origin: China
Brand Name: BIG COLOR
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $6,600.00/sets 1-2 sets
Contact Now

Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment

Description
Type: Inkjet Printer Print Dimension: 600mm*900mm
Applicable Industries: Printing Shops, Advertising Company Condition: New
Plate Type: Flatbed Printer Use: Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer
Automatic Grade: Automatic Color & Page: Multicolor
Voltage: 220v Dimensions(L*W*H): 1.50*1.6*1.38m
Weight: 320 KG Warranty: 1 Year
Ink Type: UV Ink Key Selling Points: High Productivity
Marketing Type: Hot Product 2022 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Motor, Other, Gear, Engine Product Name: A1 Size Uv Flatbed Printer
Ink Type: Uv Rigid/soft Ink Printing Material: Flat And Rotary Item
Color: White+CMYK+Varnish Application: Flat Items And Rotary Item
Print Speed: High Speed Print Head: TX800
Printing Size: 60cm*90cmcm(24*41") Operating System: Win7, Win8, Win10

Product Description

Product Application

Big Color small size uv printer flatbed can print on rotary and flat material by one printer. It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

SPECIFICATIONS FOR ZT-6090
Product Name
uv6090  flatbed printer
Model
ZT6090 uv printer
Printer head
3 pc TX800/i 3200U1 head
Speed
7.5m2/h(Production mode)  / 5.5m2/h(Precision mode) / 4.5m2/h(High precision mode)
Maximum Resolution
720*4320 dpi
Ink
4 color +white +varnish
Printing Type
Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Connect port
USB3.0 High speed transfer port
Machine Dimension
1.5*1.6*1.38m
packing size
1.85*1.69*1.05m=3.282
Model No
Print head
Printing area
Printing height
Speed
Color
6090-dx8
3 pcs Epson DX8
600*900mm
250mm
4.5m²/h
CMYK+W+V
6090-dx9
3 pcs Epson xp600
600*900mm
250mm
4.5m²/h
CMYK+W+V
6090-4720/3200
3 pcs Epson 4720
600*900mm
250mm
7.5m²/h
CMYK+W+V
6090-4H
4pcs Epson DX8
600*900mm
250mm
7.5m²/h
Pre-coating+
CMYK+W+V
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 0
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 1
System:
Much more professional and more stable than desktop modified printer. Control the color freely.
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 2
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 3
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 4
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 5
4 head solution optional
1.
Pre-coating+white +color+varnish
Pre-coating means if you printing on metal, glass, tile, you no need to use hand to swap pre-coating in advance. our printhead can print for you directly.
2
Printed glue+white+color+varnish
This use for special PET film to print glue on the PET film, then the PET film adhesive on material
3
White+color+high light varnish+ silver varnish
This is for 2 different varnish printing. then make sure your picture have different emboss effect
4
2 head for white+ 2 heads for color
No varnish, but the print speed is double than above solutions.
All solution we could support you the necessary ink please feel free to talk with us
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 6

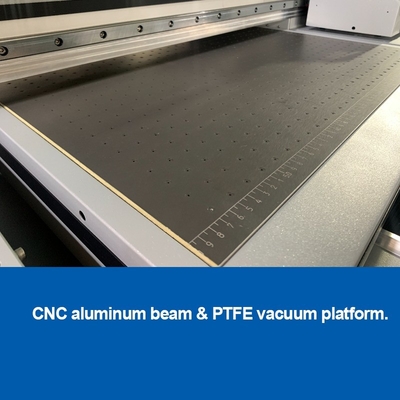

CNC aluminum beam & PTFE vacuum platform.
CNC alumimum beam is good material for good printing.The main function is to ensure the stability of the printing process
PTFE vaccum flatbed means the platform hardness and can even use knife to scratch on it without any hurt. And also with strong suction function,Especially for light materials, ensure that it will not move during the printing process
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 7

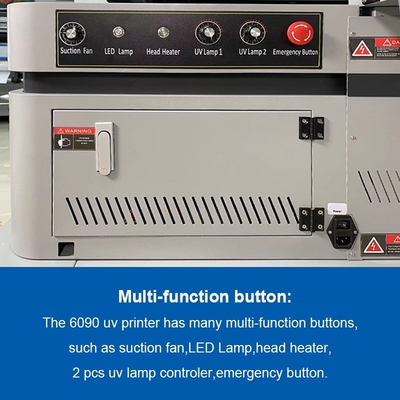

Multi-function button：
Printhead heater button can support a stable working temperature even on cold winter.
UV lamp power can control it separately .
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 8
Stronger CNC Machine Frame：
16 position adjustable position for vaccum table.
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 9
LCD Touch Control Panel:
LED touch screen, more convenient operation
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 10
Reliable Board System.
Two small fan is installed on the board to cool down the board card and prolong the service life of the board card.
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 11
Rotary & Mug cup Print Unit.
Both flatbed printing and rotary printing(for bottle and mugs)
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 12
Machine could also be installed as table type.
the price could be also lower.

Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 13
Auto Height Sensor：
It can automatically measure the printing height, saving a lot of labor and time for you.
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 14
Ink Alarming system & Ink Stiring system:
Powder drop speed, Powder shake speed, heater temperature adjustable.
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 15
Stronger Screw Bar on Yaxis:
The printing movement of the machine depends on the screw.We use many stable screw to guaranteed quality.
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 16
3pcs Big Water cooling Lamp.

Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 17
Dual Fan Body Cooling System:
Fan cooling system for machine body and boards system cooling. It can extend the working life of boards system and machine parts.

Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 18

Different head optional for different request

3200 head:
higher head cost, but faster printing speed
it is fit for printing factory choose
DX8 head:
Lower head cost, but speed slower than 3200 head
it is fit for home work usage
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 19
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 20

Main Features

1) Not only can print on flatbed material but also can printer cylinders.

2) Automatic stirring system for white ink and lacking ink alarming system.

3) PTFE cellular flatform,durable and stable.

4) Carriage height could reach to 250mm ,and it can work on 3 heads by varnish+white+color or even 4 heads.

5) Support for multiple printing on same picture by one time,fit for most special production request .

6) Our Big color have focus on printer research manufacture for more than 10 yeas, we also work on OEM printing machine. so we could also give you best suggestion and solution for your printing request if you need.


CE Certifications
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 21


Sample
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 22
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 23
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 24
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 25
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 26
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 27
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 28
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 29
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 30
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 31
Our Service
Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 32

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 33

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Print head TX800 A1 UV Printer 6090 for Large Size Phone Case Printing Equipment 34
FAQ
1. Do you offer printing free samples based my design?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount
when you machine order less than 4 sets. if more than 5 sets or need us design for you, the date can be negotiation.

3. What’s your payment method?
Payment method is T/T , Western Union, Paypal.

4. If I have some technical problem, how can you help us to solve it?
Firstly, we have lots of teaching video to help you install machine . and then we have engineer to use the Teamviewer and Anydesk to help you finish . Most of engineer have been in our factory for more than 5 years. we are sure you could get best reliable service.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request. Also for OEM model.

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
