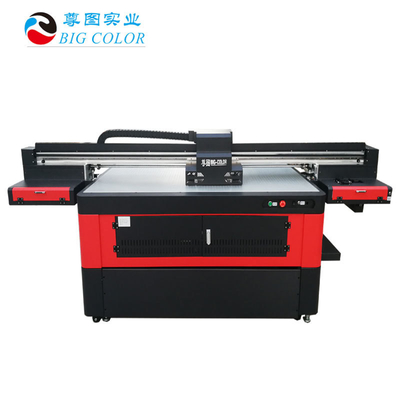

ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile

ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile

Large Image :  ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile

Product Details:
Place of Origin: Anhui, China
Brand Name: Big Color
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $8,300.00/sets 1-4 sets
Packaging Details: The normal package is stronger wooden box with metal structure inside(packaging size: 2.92*1.82*1.22M=6.48CBM. If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it accordin
Contact Now

ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile

Description
Type: Inkjet Printer Print Dimension: 1600*1000mm
Applicable Industries: Printing Shops, Construction Works , Food & Beverage Shops, Advertising Company Condition: New
Plate Type: Flatbed Printer Use: Label Printer, Card Printer, Bill Printer
Automatic Grade: Automatic Color & Page: Multicolor
Voltage: 110/220v Dimensions(L*W*H): 2.8m*1.66m*1.38m
Weight: 630 KG Warranty: 1 Year
Ink Type: UV Ink Key Selling Points: High Productivity
Marketing Type: Ordinary Product Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Motor, Board Product Name: 1610 Uv Flatbed Printer
Print Head: TX800/EPS3200 Max. Printing Height: 25cm
Rip Software: Maintop(main) Photoprint(optional) Printing Size: 1600*1000mm
Ink: Uv Ink Materials: Both Flat And Rotary Item
Interface: USB 3.0 Printing Color: Cmyk+white+varnish
Port: Shanghai Port,Ningbo Port,Guangzhou Port,etc

Product Application

Big Color small size uv flatbed printer can print on rotary and flat material by one printer,It can print colors , white and varnish at the same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

Product Description
SPECIFICATIONS FOR ZT-1610
Product Name
1610 size uv flatbed printer
Model
ZT1610
Printer head
1/2/3 tx800 heads
Speed
7.5m2/h(Production mode)  / 6.5m2/h(Precision mode) / 5.5m2/h(High precision mode)
Maximum Resolution
720*4320 dpi
Ink
4 color +white +varnish
Printing Type
Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Machine Dimension
2.8*1.66*1.38M
packing size
2.92*1.82*1.22M=6.48CBM
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 0
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 1
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 2

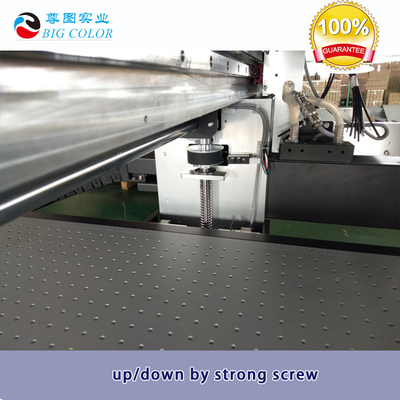

carrriage up and down by screw
Machine use strong screw to up and down.The use of carriage lift, so the printing resolution is high
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 3
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 4
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 5
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 6
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 7
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 8
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 9
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 10
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 11
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 12
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 13

2 kinds of print head to choose

ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 14
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 15
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 16
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 17

Main Features

1) Not only can print on flatbed material but also can printer cylinders.

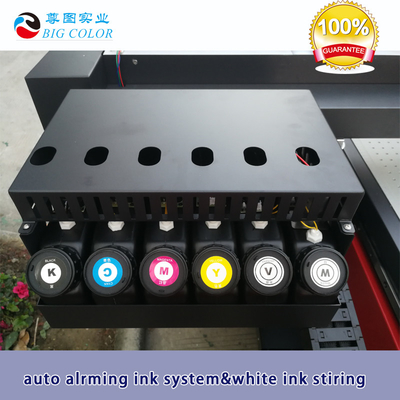

2) Automatic stirring system for white ink and lacking ink alarming system.

3) PTFE cellular flatform,durable and stable.

4) Carriage height could reach to 8cm ,and it can work on 3 heads by varnish+white+color.

5) Support for multiple printing on same picture by one time,fit for most special production request .

Our Exhibition
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 18
Our Factory
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 19
Certifications
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 20
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 21
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 22
Samples Display
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 23
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 24
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 25
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 26
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 27
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 28
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 29
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 30
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 31
Our Service
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 32

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 33

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 34
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 35
Packing & Delivery
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 36
Packaging
Size
2.92*1.82*1.22M=6.48CBM
Weight
630KG



Packaging
Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
ZT1610 UV Flatbed Printer The Best Option for Printing on Glass Acrylic Metal and Tile 37
Delivery
Delivery Time
7 days after payment
Port
Shanghai port or as customer's request.
