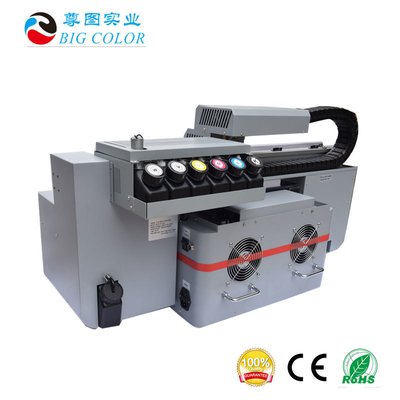

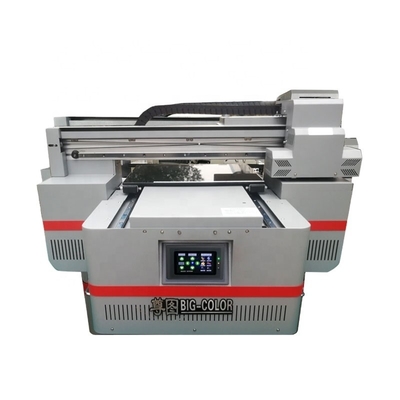

ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers

ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers

Large Image :  ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers

Product Details:
Place of Origin: Anhui, China
Brand Name: big color
Certification: CE,ROHS,MSDS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $720.00 - $4,000.00/sets
Packaging Details: The normal package is stronger wooden box . If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to customers special request.
Contact Now

ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers

Description
Type: Inkjet Printer, Inkjet Printer Print Dimension: 40*60cm
Applicable Industries: Printing Shops, Advertising Company Condition: New
Plate Type: Flatbed Printer Use: Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Bottle Printer
Automatic Grade: Automatic Color & Page: Multicolor
Voltage: 220v Dimensions(L*W*H): 97*101*56cm
Weight: 90 KG Warranty: 13 Months
Ink Type: Uv Ink Key Selling Points: Multi Color
Marketing Type: Hot Product 2021 Machinery Test Report: Not Available
Video Outgoing-inspection: Provided Warranty Of Core Components: 13 Months
Core Components: Motor, Body System Application: Flat Items
Print Head: Tx800 Printing Material: Metal,ceramic,acrylic Board,wood,leather And So On
Print Speed: 60second/A3 Product Name: Flatbed Uv Printer A2
Ink Colors: CMYK+White+varnish Operating System: Win7/win10
Ink Type: UV Curable Ink/UV Hard Ink/UV Soft Ink

Model No
Print head
Printing area
Printing height
Speed
Color
A3-UV-single head
1 pcs Epson DX8
40*30cm
15cm
120sec/page
(A3)
CMYK+W
A3-UV-double head
2 pcs Epson DX8
40*30cm
15cm
80sec/page
(A3)
CMYK+W+V
A3-DTG-single head
1 pcs Epson DX7
40*30cm
15cm
120sec/page
(A3)
CMYK+W
A2-UV-doube head
2 pcs Epson DX8
40*60cm
15cm
60sec/page
(A3)
CMYK+W+V
9060-dx8
3 pcs Epson DX8
100*70cm
8cm
4.5m²/h
CMYK+W+V
9060-4720
3 pcs Epson 4720
100*70cm
8cm
10m²/h
CMYK+W+V
1610-dx8
3 x Epson DX8
160*100cm
25cm
6.5m²/h
CMYK+W+V
1610-4720
3 x Epson 4720
160*100cm
25cm
12m²/h
CMYK+W+V
2513-dx8
3 pcs Epson DX8
250*130cm
8cm
6.5m²/h
CMYK+W+V
2513-4720
3 pcs Epson 4720
250*130cm
8cm
12m²/h
CMYK+W+V
Product Description

Product Application

Big Color small size uv flatbed printer can print on rotary and flat material by one printer,It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

SPECIFICATIONS FOR ZT-4060
Product Name
a2 uv flatbed printer
Model
ZT4060
Printer head
2 pc tx800 head(dx8)
Speed
A3: 60seconds.       A4: 70 seconds
Maximum Resolution
720*4320 dpi
Ink
K C M Y W V  4 COLOR +WHITE+VARNISH
Printing Type
Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Max Printing heigh
15 cm for standared   (20cm for special order)
Rip software
Maintop 6 uv version for standared & photoprint uv 12 for optional
Machine Dimension
1.14*1.09*0.76m

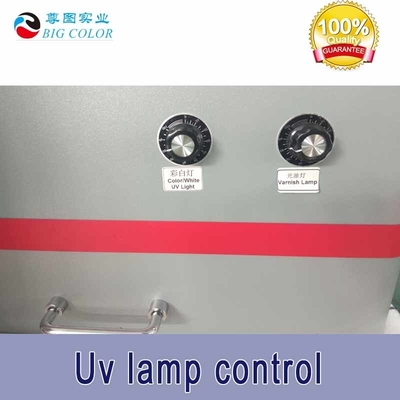

UV lamp
2 UV LED LAMP For water coolling
High level mode 4060 uv printer,with vaccum flatbed(optional）
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 0
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 1
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 2
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 3

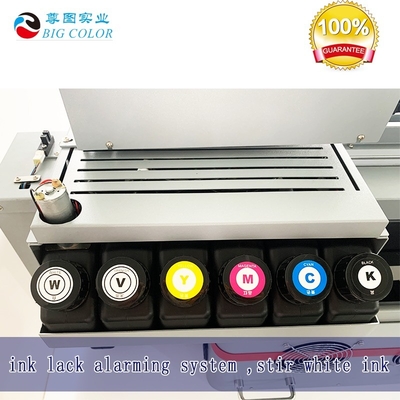

Automatic stirring system

Automatic stirring system for white ink and lacking ink alarming system.Making sure non-stop woking .together with alarm function for ink shortage.

LCD touch panel

Many operations can be done on the touch screen,Make your operation of the machine more convenient and improve work efficiency
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 4

multi-functional

1.head heat:used for cold weather 2.emergency stop 3.rotary-flatbed switch
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 5

wisible work window.

Machine use clamshell model. User can install printhead easily
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 6
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 7

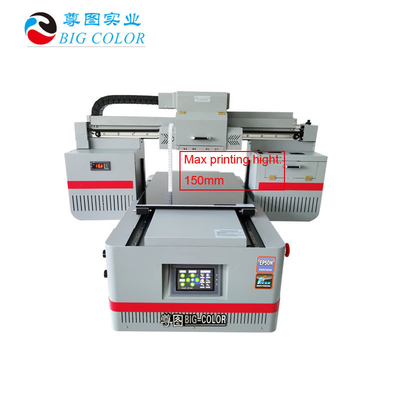

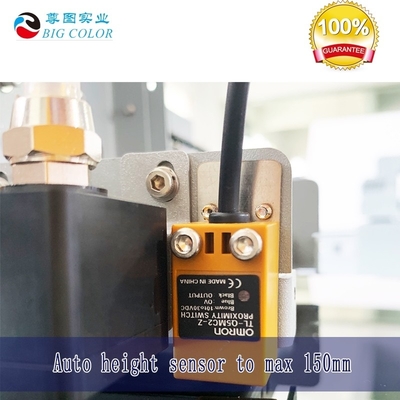

Auto height sensor to max 150mm

Automatic detection of height without manual operation, making the machine smarter and more humanized design, making printing more accurate

Hiwin liner guide way

Use Taiwan Hiwin liner,support for multiple printing on same picture by one time,high precision machine boday,fit for most special production request,it can work on any line
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 8
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 9

Main Features

1) White+color print at one time.

2) Hiwin liner and silence chain

3) Water cooling uv led lamp

4) Maintop or photoprint rip software

5) Auto height setting sensor.

6) White ink stirting & ink alarming system

Certifications
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 10
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 11
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 12
Sample Display
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 13
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 14
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 15
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 16
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 17
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 18
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 19
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 20
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 21
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 22
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 23
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 24
Our Exhibition
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 25
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 26
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 27
Our Service
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 28
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 29

Pre-Sales Service

* Inquiry and consulting support.


* Sample testing support.

* View our Factory.
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 30

After-Sales Service

* Training how to instal the machine, training how to use the machine.


* Engineers available to service machinery overseas.
Packing & Delivery
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 31
Packaging
Size
1.14*1.09*0.76m=0.95



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
ZT4060 UV Printer A2 for Label Printing Machine 90 KG With Rotary Print Bottles/Label Printers 32
Delivery
Delivery Time
7 days after payment
Port
Shanghai port or as customer's request.
FAQ
1. Do you offer free printing samples?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount .

3. What’s your payment method?
Payment method is T/T , Western Union, paypal.

4. If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly,will send an
overseas engineer service to you.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken
parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
