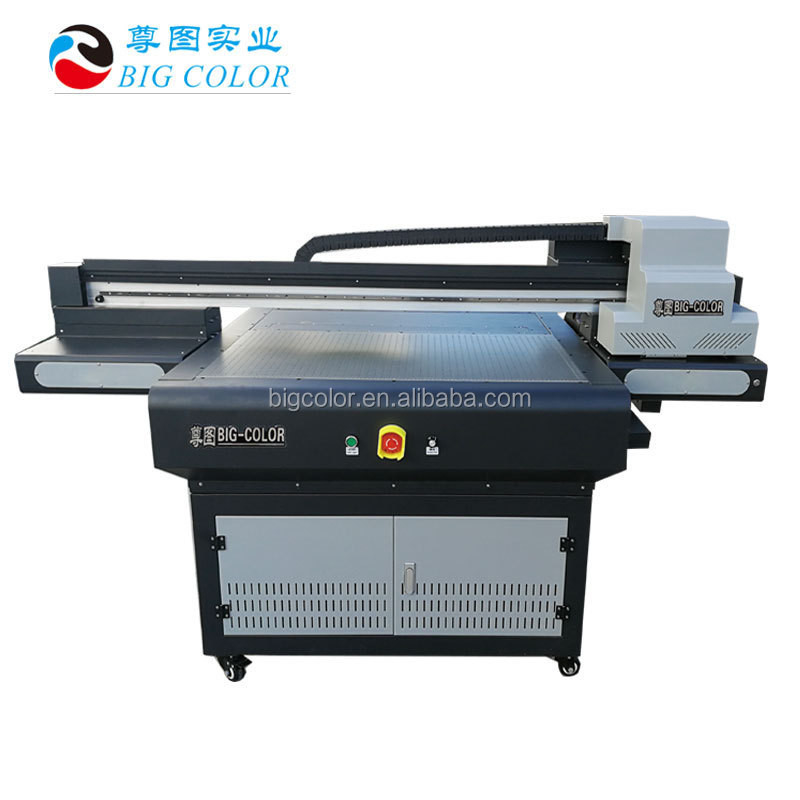

Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect

Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect

Large Image :  Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect

Product Details:
Place of Origin: Anhui, China
Brand Name: Big color
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $6,885.50/sets 1-2 sets
Packaging Details: wooden box
Contact Now

Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect

Description
Type: Inkjet Printer Print Dimension: 90*60
Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Printing Shops, Energy & Mining, Advertising Company Condition: New
Plate Type: Flatbed Printer, Screen Printer Use: Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer
Automatic Grade: Automatic Color & Page: Multicolor
Voltage: 220v Dimensions(L*W*H): 2120*1500*1220mm
Weight: 380 KG Warranty: 13 Months
Ink Type: Uv Ink Key Selling Points: High Productivity
Marketing Type: Hot Product 2019 Machinery Test Report: Not Available
Video Outgoing-inspection: Provided Warranty Of Core Components: 13 Months
Core Components: Motor, Boards System After-sales Service Provided: Engineers Available To Service Machinery Overseas
Product Name: Multicolor Uv Flatbed Printer Ink Type: UV Curable Ink/UV Hard Ink/UV Soft Ink
Printing Material: Metal,ceramic,acrylic Board,wood,leather And So On Color: CMYK+White+Varnish
Print Head: TX800 Printing Size: 35.43*23.62in
Operating System: Win7/win10 Port: Shanghai PORT

Product Application

Big Color small size uv flatbed printer can print on roraty and flat material by one printer,It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

Product Description
SPECIFICATIONS FOR ZT-9060
Product Name
9060 uv flatbed printer
Model
ZT9060
Printer head
3 tx800 heads
Speed
6.5m2/h(Production mode)  / 5.5m2/h(Precision mode) / 4.5m2/h(High precision mode)
Maximum Resolution
720*4320 dpi
Ink
4 color +white +varnish
Printing Type
Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Machine Dimension
2.12*1.5*1.22m
packing size
2.56*1.44*1.50M=5.53CBM
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 0



Special capping cleaning system


Equiped with 3 separate ink pump.can pump and cleaning separate

Save ink and improve cleaning efficiency














Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 1



CNC aluminum beam&PTFE cellular platform

Machine use CNC stronger aluminum beam and cellular platform
which make sure the printing  with high resolution and stronger vaccum system
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 2



Double screw rob system

Machine installed by 2 screw rob system.Which make carriage and beam move more stable and longer working life


Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 3
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 4
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 5
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 6
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 7

Stable board with cooling fan

Reliable boards system work on stable,high precision machine body ,it can work on any line.When the temperature is high, there is a cooling fan automatically cool down.

3 pcs uv led lamp

The ink printed by the print head is quickly dried at high temperature to ensure a clean and bright pattern.
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 8

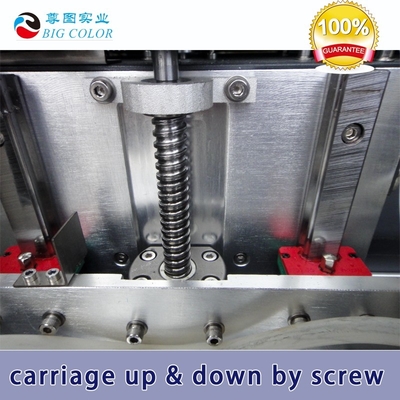

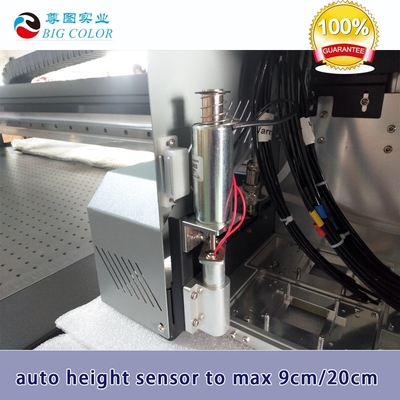

Automatically detect the height
Carriage height could reach to 8cm ;and it can work on 3 heads by varnish+white+color,Print speed faster,and control easier.


Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 9

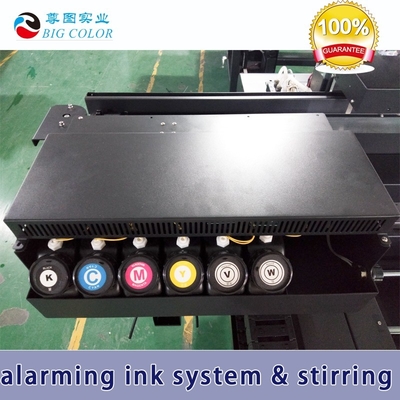

Automatic strring system
Automatic stirring system for white ink and lacking ink alarming system.Making sure non-stop working.Together with alarm function for ink shortage.

2 heads for choose
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 10
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 11

Main Features

1) Not only can print on flatbed material but also can printer cylinders.

2) Automatic stirring system for white ink and lacking ink alarming system.

3) PTFE cellular flatform,durable and stable.

4) Carriage height could reach to 8cm ,and it can work on 3 heads by varnish+white+color.

5) Support for multiple printing on same picture by one time,fit for most special production request .

Our Exhibition
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 12
Our Factory
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 13
Certifications
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 14
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 15
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 16
Samples Display
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 17
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 18
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 19
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 20
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 21
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 22
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 23
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 24
Our Service
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 25
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 26

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 27

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 28
Packaging
Size
 2.56*1.44*1.50M=5.53CBM
Weight
0.38 T



Packaging
Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Photo Printing Machine 9060 UV Flatbed Printer with Dx8 Heads and Varnish Effect 29
Delivery
Delivery Time
7 days after payment
Port
Shanghai port or as customer's request.
