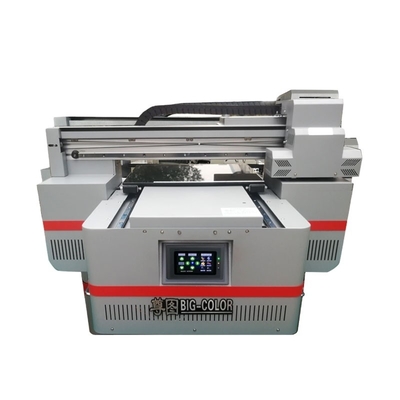

TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing

TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing

Large Image :  TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing

Product Details:
Place of Origin: Anhui, China
Brand Name: BIG COLOR
Certification: CE,ROHS,MSDS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $3,000.00/sets >=1 sets
Packaging Details: wooden box
Contact Now

TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing

Description
Condition: New Dimensions(L*W*H): 820mm*620mm*520mm
Plate Type: Flatbed Printer Weight: KG
Automatic Grade: Automatic Color & Page: Multicolor
Use: Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer Voltage: 220V
Applicable Industries: Building Material Shops, Printing Shops, Advertising Company Warranty: 1 Year, 1 Year
Print Dimension: 400mm*300mm Ink Type: UV INK
Key Selling Points: Multi Color Marketing Type: New Product 2019
Machinery Test Report: Not Available Video Outgoing-inspection: Not Available
Warranty Of Core Components: 1 Year Core Components: Gear, Gearbox, Motor, Bearing, Engine, Pump
Printhead: Tx800 Print Head Application: T-shirt,Acrylic,pp, And So On
Color: 4 Colors (CMYK)+white Print Speed: 60 Sec/page
Resolution: 720x4320 Dpi Printing Size: 30*40cm
Printing Height: 15 Cm For Standared (20cm For Special Order) RIP Software: Maintop/Photoprint

Product Application

Big Color small size uv flatbed printer can print on roraty and flat material by one printer,It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

Product Description
SPECIFICATIONS FOR ZT-3040
Product Name
a3 uv flatbed printer
Model
ZT3040
Printer head
1 pc tx800 head(dx8)
Speed
A3: 120seconds.       A4: 140 seconds
Maximum Resolution
720*4320 dpi
Ink
W W K C M Y  4 COLOR +WHITE
Printing Type
Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Max Printing heigh
15 cm for standared   (20cm for special order)
Rip software
Maintop 6 uv version for standared & photoprint uv 12 for optional
Machine Dimension
61*85*56cm
UV lamp
1 UV LED LAMP For water coolling
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 0
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 1
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 2
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 3
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 4
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 5
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 6

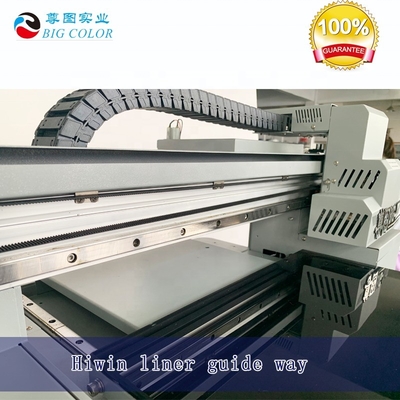

Famous HIWIN brand guide rail way

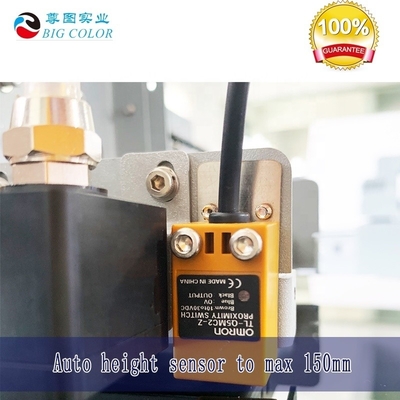

Automatic height sensor

Intelligent control of printhead printing height, more accurate and convenient.Other sellers use manual controls

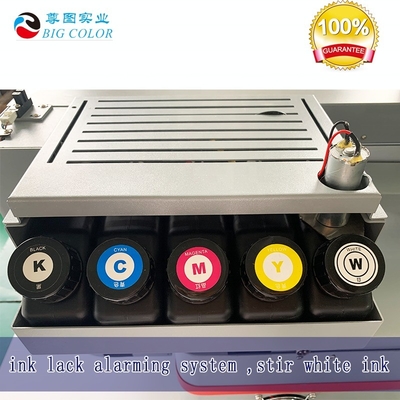

Ink system:stir and alarm

Main Features

1) White+color print at one time.

2) Hiwin liner and silence chain

3) Water cooling uv led lamp

4) Maintop or photoprint rip software

5) Auto height setting sensor.

6) White ink stirting & ink alarming system

Certifications
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 7
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 8
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 9
Sample Display
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 10
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 11
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 12
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 13
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 14
Our Exhibition&Factory
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 15
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 16
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 17
Our Service
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 18

Pre-Sales Service

* Inquiry and consulting support.


* Sample testing support.

* View our Factory.
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 19

After-Sales Service

* Training how to instal the machine, training how to use the machine.


* Engineers available to service machinery overseas.
Packing & Delivery
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 20
Packaging
Size
1.00*0.80*0.73m=0.584



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
TX800 Head Multicolor Big Color 3040 UV A3 Flatbed Printer for Pen/Mug Cup Printing 21
Delivery
Delivery Time
7 days after payment
Port
Shanghai port or as customer's request.
FAQ
1. Do you offer free printing samples?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount .

3. What’s your payment method?
Payment method is T/T , Western Union, paypal.

4. If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly,will send an
overseas engineer service to you.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken
parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
