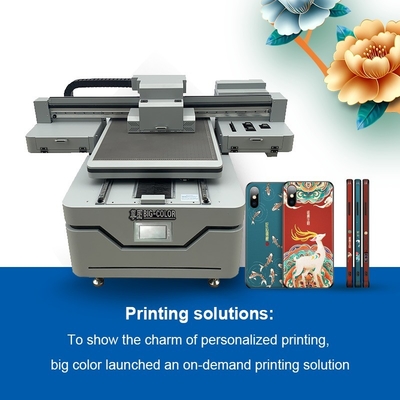

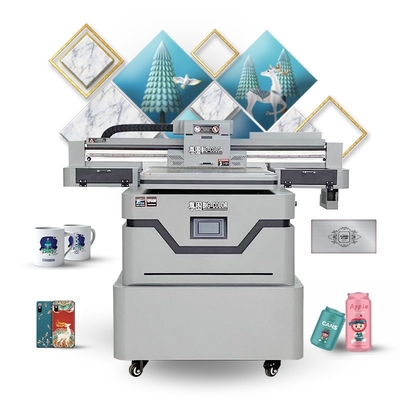

ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish

ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish

Large Image :  ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish

Product Details:
Place of Origin: Anhui, China
Brand Name: Big-color
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $7,200.00/sets 1-4 sets
Packaging Details: The normal package is stronger wooden box with metal structure inside(packaging size: 2300*1400*1500mm). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to c
Contact Now

ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish

Description
Type: Inkjet Printer Print Dimension: 600mm*900mm, A1, 90*60
Applicable Industries: Home Use Condition: New
Plate Type: Flatbed Printer Use: Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer
Automatic Grade: Automatic Color & Page: Multicolor
Voltage: 220V/110V Dimensions(L*W*H): 1.6*1.4*1.22M
Weight: 380 KG Warranty: 1 Year
Ink Type: Uv Ink Key Selling Points: Easy To Operate
Marketing Type: New Product 2022 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Motor, Pump Product Name: 6090 Uv Printer Flatbed
Application: Print On Flat Items And Rotary Items Ink Type: UV Curable Ink/UV Hard Ink/UV Soft Ink
Printing Material: Metal,ceramic,acrylic Board,wood,leather,cloth And So On Color: CMYK+White+Varnish
Print Head: TX800 Resolution: 720*4320dpi
Operating System: Win7/win10 Feature: Can Printer On Flatbed Metarial And Cylinder
After Warranty Service: Online Support

Product Description

Product Application

Big Color small size uv printer flatbed can print on rotaty and flat material by one printer. It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

SPECIFICATIONS FOR ZT-6090
Product Name
uv6090  flatbed printer
Model
ZT6090 uv printer
Printer head
3 pc TX800/4720/ 3200U1 head
Speed
7.5m2/h(Production mode)  / 5.5m2/h(Precision mode) / 4.5m2/h(High precision mode)
Maximum Resolution
720*4320 dpi
Ink
4 color +white +varnish
Printing Type
Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Connect port
USB3.0 High speed transfer port
Machine Dimension
1.5*1.6*1.38m
packing size
1.85*1.69*1.05m=3.282
Model No
Print head
Printing area
Printing height
Speed
Color
6090-dx8
3 pcs Epson DX8
600*900mm
250mm
4.5m²/h
CMYK+W+V
6090-dx9
3 pcs Epson xp600
600*900mm
250mm
4.5m²/h
CMYK+W+V
6090-4720/3200
3 pcs Epson 4720
600*900mm
250mm
7.5m²/h
CMYK+W+V
6090-4H
4pcs Epson DX8
600*900mm
250mm
7.5m²/h
Pre-coating+
CMYK+W+V
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 0
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 1
System:
Much more protessional and more stable than desktop modified printer. Control the color freely.
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 2
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 3
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 4
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 5
4 head solution optional
1.
Pre-coating+white +color+varnish
Pre-coating means if you printing on metal, glass, tile, you no need to use hand to swap pre-coating in advance. our printhead can print for you directly.
2
Printed glue+white+color+varnish
This use for special PET film to print glue on the PET film, then the PET film adhesive on material
3
White+color+high light varnish+ silver varnish
This is for 2 different varnish printing. then make sure your picture have different emboss effect
4
2 head for white+ 2 heads for color
No varnish, but the print speed is double than above solutions.
All solution we could support you the necessary ink please feel free to talk with us
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 6

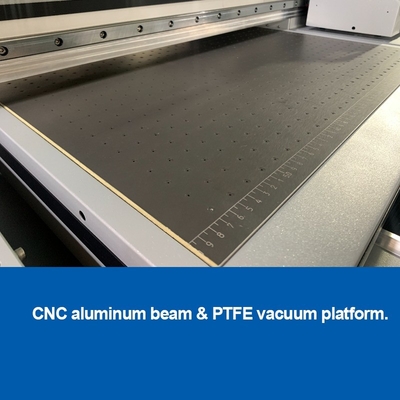

CNC aluminum beam & PTFE vacuum platform.
CNC alumimum beam is good material for good printing.The main function is to ensure the stability of the printing process
PTFE vaccum flatbed means the platform hardness and can even use knife to scratch on it without any hurt. And also with strong suction function,Especially for light materials, ensure that it will not move during the printing process
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 7

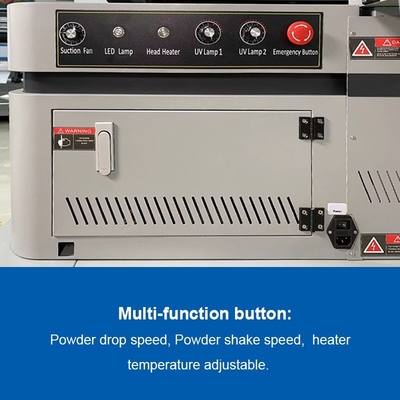

Multi-function button：
Poweder machine control Unit: Powder drop speed, Powder shake speed, heater temperature adjustable.
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 8
Stronger CNC Machine Frame：
16 position adjustable position for vaccum table.
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 9
LCD Touch Control Panel:
LED touch screen, more convenient operation
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 10
Reliable Board System.
Two small fan is installed on the board to cool down the board card and prolong the service life of the board card.
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 11
Rotary & Mug cup Print Unit.
Both flatbed printing and rotary printing(for bottle and mugs)
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 12
Machine could also be installed as table type.
the price could be also lower.

ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 13
Auto Height Sensor：
It can automatically measure the printing height, saving a lot of labor and time for you.
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 14

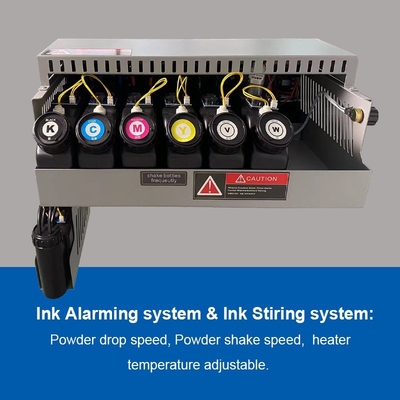

Ink Alarming system & Ink Stiring system:
Powder drop speed, Powder shake speed, heater temperature adjustable.
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 15
Stronger Screw Bar on Yaxis:
The printing movement of the machine depends on the screw.We use many stable screw to guaranteed quality.
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 16
3pcs Big Water cooling Lamp.

ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 17
Dual Fan Body Cooling System:
Fan cooling system for machine body and boards system cooling. It can extend the working life of boards system and machine parts.

ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 18

Different head optional for different request

3200 head:
higher head cost, but faster printing speed
it is fit for printing factory choose
DX8 head:
Lower head cost, but speed slower than 3200 head
it is fit for home work usage
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 19
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 20

Main Features

1) Not only can print on flatbed material but also can printer cylinders.

2) Automatic stirring system for white ink and lacking ink alarming system.

3) PTFE cellular flatform,durable and stable.

4) Carriage height could reach to 250mm ,and it can work on 3 heads by varnish+white+color or even 4 heads.

5) Support for multiple printing on same picture by one time,fit for most special production request .

6) Our Big color have focus on printer research manufacture for more than 10 yeas, we also work on OEM printing machine. so we could also give you best suggestion and solution for your printing request if you need.


CE Certifications
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 21


Sample
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 22
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 23
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 24
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 25
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 26
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 27
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 28
Our Service
ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 29

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 30

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

ZT 6090 UV Flatbed Printer Direct Printing on Metal and Flat Materials with Gloss Finish 31
FAQ
1. Do you offer printing free samples based my design?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount
when you machine order less than 4 sets. if more than 5 sets or need us design for you, the date can be negotiation.

3. What’s your payment method?
Payment method is T/T , Western Union, Paypal.

4. If I have some technical problem, how can you help us to solve it?
Firstly, we have lots of teaching video to help you install machine . and then we have engineer to use the Teamviewer and Anydesk to help you finish . Most of engineer have been in our factory for more than 5 years. we are sure you could get best reliable service.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request. Also for OEM model.

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
