110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine

110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine
110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine

Large Image :  110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine

Product Details:
Place of Origin: Anhui, China
Brand Name: Big Color
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $12,300.00/sets 1-4 sets
Packaging Details: The normal package is stronger wooden box with metal structure inside(packaging size: 2.92*1.82*1.22M=6.48CBM. If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it accordin
Contact Now

110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine

Description
Type: Inkjet Printer Print Dimension: 1900mm
Applicable Industries: Printing Shops, Construction Works , Food & Beverage Shops, Advertising Company Condition: New
Plate Type: Roll-to-Roll Printer Use: Label Printer, Card Printer, Bill Printer
Automatic Grade: Automatic Color & Page: Multicolor
Voltage: 110/220v Dimensions(L*W*H): 1.5m*1.6m*1.38m
Weight: 830 KG Warranty: 1 Year
Ink Type: UV Ink Key Selling Points: High Productivity
Marketing Type: Ordinary Product Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Motor, Board Product Name: Uv Hybrid Machine
Print Head: EPS3200 Rip Software: Maintop(main) Photoprint(optional)
Printing Size: 1900mm Ink: Uv Ink
Materials: Both Flat And Roll Item Interface: USB 3.0
Printing Color: Cmyk+white+varnish/Cmyk+white+cmyk Printing Material: Leather,transparent Film,etc
Port: Shanghai Port,Ningbo Port,Guangzhou Port,etc

Product Description

Product Application

Big Color small size uv printer roll to roll can print on leather,hyaloid membrane,KT board. It can print colors , white and colors at same time.

SPECIFICATIONS FOR ZT1900- hybrid
Product Name
uv hybrid printer
Model
ZT1900- hybrid
Printer head
3 pc 4720/ 3200U1 head
Speed
7.5m2/h(Production mode)  / 5.5m2/h(Precision mode) / 4.5m2/h(High precision mode)
Maximum Resolution
720*4320 dpi
Ink
4 color +white +color uv ink or cmyk eco solvent ink
Printing Type
leather,hyaloid membrane,KT board
Connect port
USB3.0 High speed transfer port
Machine Dimension
1.5*1.6*1.38m
packing size
1.85*1.69*1.05m=3.282
110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 0
110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 1
System:
Much more protessional and more stable than desktop modified printer. Control the color freely.
110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 2
4 head solution optional
1.
Pre-coating+white +color+varnish
Pre-coating means if you printing on metal, glass, tile, you no need to use hand to swap pre-coating in advance. our printhead can print for you directly.
2
Printed glue+white+color+varnish
This use for special PET film to print glue on the PET film, then the PET film adhesive on material
3
White+color+high light varnish+ silver varnish
This is for 2 different varnish printing. then make sure your picture have different emboss effect
4
2 head for white+ 2 heads for color
No varnish, but the print speed is double than above solutions.
All solution we could support you the necessary ink please feel free to talk with us
110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 3

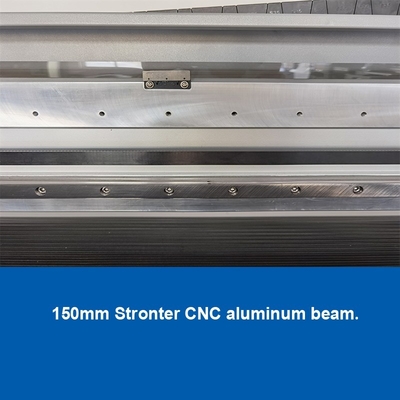

150mm stronger CNC aluminum beam
CNC alumimum beam is good material for good printing.The main function is to ensure the stability of the printing process

110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 4

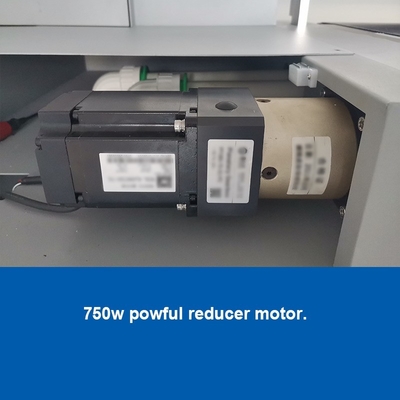

750W powful motor：

110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 5

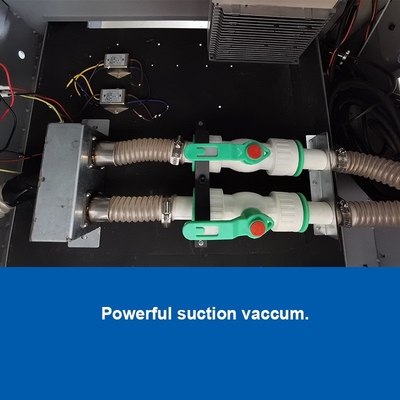

Powerful suction vaccum

110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 6

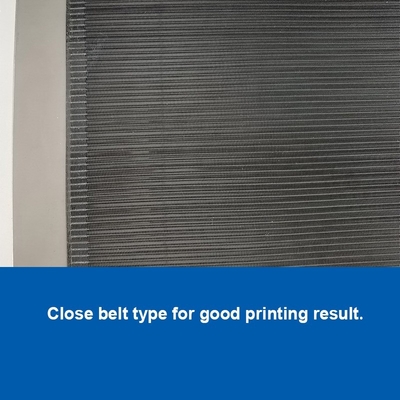

Close belt typefor good pronting result

110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 7
Three U3200 primtheads and CNC aluminum carriage

110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 8

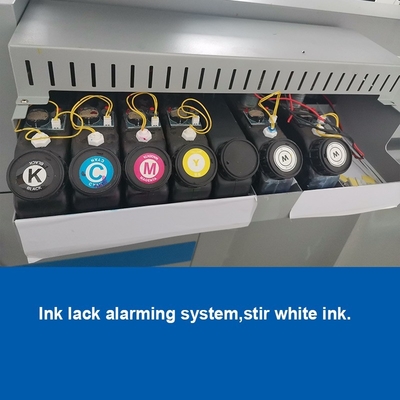

Ink Alarming system & Ink Stiring system:
Powder drop speed, Powder shake speed, heater temperature adjustable.
110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 9
Reliable Board System.

110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 10
Stronger Screw Bar on Yaxis:
The printing movement of the machine depends on the screw.We use many stable screw to guaranteed quality.
110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 11
3pcs Big Water cooling Lamp.

110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 12
110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 13
3200 head:
higher head cost, but faster printing speed
it is fit for printing factory choose


Our Big color have focus on printer research manufacture for more than 10 yeas, we also work on OEM printing machine. so we could also give you best suggestion and solution for your printing request if you need.


CE Certifications
110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 14


Sample






leather

sheath
110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 15
Our Service
110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 16

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 17

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

110/220v Hybrid UV Roll To Roll And Flatbed Printer Plotter I3200 Head Printing Machine 18
