Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications

Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications
Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications

Large Image :  Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications

Product Details:
Place of Origin: Anhui, China
Brand Name: Big-color
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $12,800.00/sets 1-1 sets
Packaging Details: wooden box
Supply Ability: 100 Set/Sets per Month
Contact Now

Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications

Description
Type: Inkjet Printer Print Dimension: 1900mm
Condition: New Plate Type: Flatbed/roll To Roll/uv Printer
Use: Leather Automatic Grade: Automatic
Color & Page: Multicolor Voltage: 110/220V
Dimensions(L*W*H): 1500*1600*1380mm Weight: 180 KG
Warranty: 13 Months Ink Type: UV Ink
Key Selling Points: High-accuracy Marketing Type: Hot Product 2022
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 13 Months Core Components: Motor, Board System
Product Name: Uv 6090 Flatbed Printer RIP Software: Maintop6.0
Printer Head: 3pc TX800/4720/3200U1 Head Speed: 7.5㎡
Color: 4 Color+White+varnish Ink Type: Uv Ink/eco Solvent Ink
Maximum Resolution: 720*4320dpi Connect Port: USB3.0 High Speed Transfer Port
Printing Type: Glass Acylic Oard Leather KT Board Machine Demension: 1500*1600*13800mm
Port: Shanghai

Product Description

Product Application

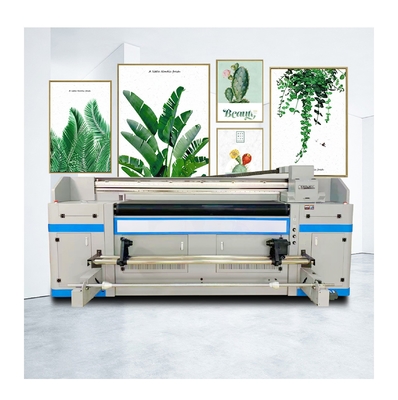

Big Color Hybrid printer uv or eco-solvent printer by 1.8m type. it not only can print roller type material but also board type material.

SPECIFICATIONS FOR ZT1900B
Product Name
uv hybrid printer
Model
ZT1900- hybrid
Belt size
1.8m*40cm(5.9ft*1.31ft)
Printer head
3 pcs 3200U1 head
Speed
(based on c+w+v mode)
13 m2/h(3 pass)
10 m2/h(4 pass)
  7 m2/h(6 pass)
Maximum Resolution
300*4320 dpi(variable dot printing mode)
Max printing heigh
50mm
Printing solution:
1. Color +White+Color ( For transparent material mirror printing)
2. White+Color+varnish
Material Type
Leather, Hyaloid membrane, KT board, Transparent film and so on.
Connect port
USB3.0 High speed transfer port
Machine Dimension
3.3*1.6*1.50 m(L*W*H)
Machine weight
780KG
Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 0
Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 1
System:
Much more professional and more stable than desktop modified printer. Control the color freely.
Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 2

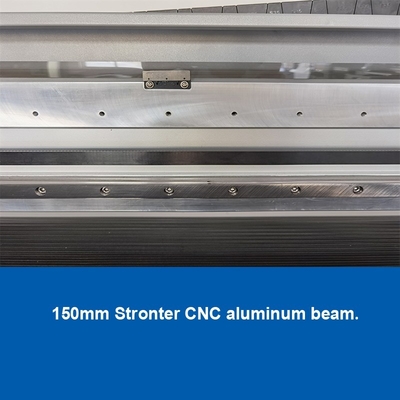

150mm stronger CNC aluminum beam
CNC alumimum beam is good material for good printing.The main function is to ensure the stability of the printing process

Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 3
Close and Soft belt
It won't have any banding on the printing material during printing.
Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 4

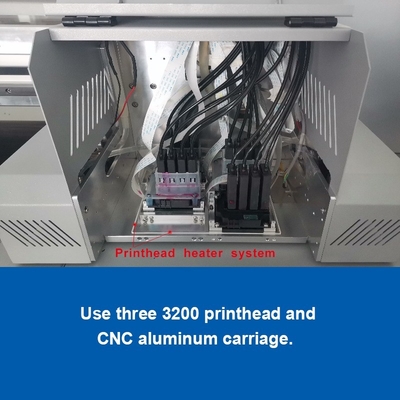

Three I3200 printheads with head heater
Aluminum CNC carriage with head heater, it can make sure the printhead can work even in cold winter.
Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 5
Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 6
750W powerful motor
Make sure the stepping move smoothly and with high accuracy
Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 7

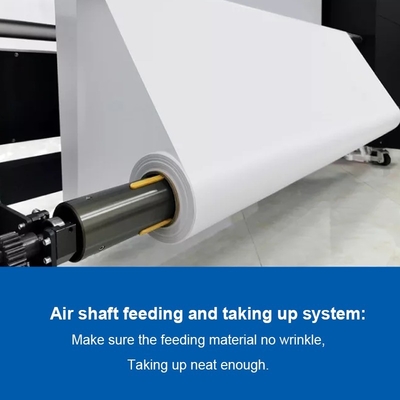

Air shaft material feeding and taking system
Make sure the all kinds of material moving smoothly and no wrinkle.
Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 8

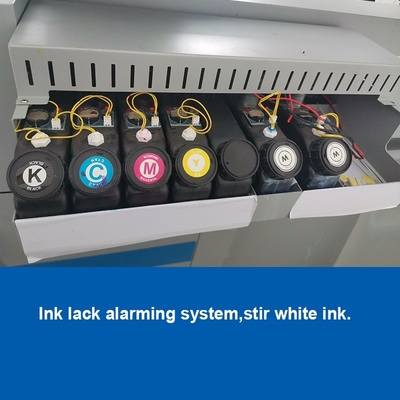

Ink Alarming system & Ink Stiring system:
White ink stirring system and cycling system, make sure there is no sediment during vacation or weekend. extend the head working life.
Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 9
Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 10

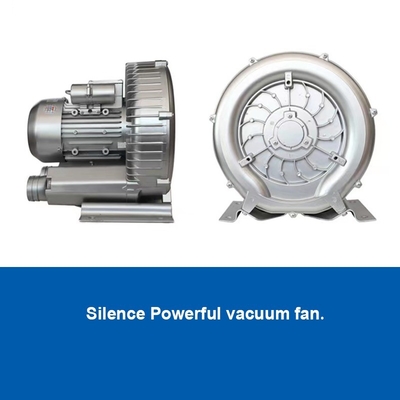

Powerful suction vacuum

1500W big vacuum for suction. it can also support 2pcs vacuum if needed. It can suction material flat enough
Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 11
3pcs Big Water cooling LED UV Lamp.

Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 12


Our Big color have focus on printer research manufacture for more than 12 years, we also work on OEM & ODM printing machine. so we could also give you best suggestion and solution for your printing request if you needed.


CE Certifications
Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 13


Our Service
Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 14

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 15

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Professional UV Flatbed Printer for Big-Color Mylar Bag Printing Applications 16
FAQ
1. Do you offer printing free samples based my design?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount
when you machine order less than 4 sets. if more than 5 sets or need us design for you, the date can be negotiation.

3. What’s your payment method?
Payment method is T/T , Western Union, Paypal.

4. If I have some technical problem, how can you help us to solve it?
Firstly, we have lots of teaching video to help you install machine . and then we have engineer to use the Teamviewer and Anydesk to help you finish . Most of engineer have been in our factory for more than 5 years. we are sure you could get best reliable service.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request. Also for OEM model.

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
