Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing

Large Image : Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Big-color
Certification:	CE,ROHS,MSDS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$7,000.00/sets 1-9 sets
Packaging Details:	The normal package is stronger wooden box with metal structure inside(packaging size: 230014001500mm). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to cu

Contact Now

Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing

Description

Type:	Inkjet Printer	Print Dimension:	90*60cm
Applicable Industries:	Building Material Shops, Restaurant, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company	Condition:	New
Plate Type:	Flatbed Printer	Use:	Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer
Automatic Grade:	Automatic	Color & Page:	Multicolor
Voltage:	220v/110v	Dimensions(LWH):	212015001220mm
Weight:	380 KG	Warranty:	1 Year, 1 Year
Ink Type:	Uv Ink	Key Selling Points:	Multi Color
Marketing Type:	Ordinary Product	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Motor, Board	After-sales Service Provided:	Video Technical Support
Product Name:	UV Flatbed Printer	Print Head:	Tx800
Printing Material:	Metal,ceramic,acrylic Board,wood,leather And So On	Print Speed:	6.5㎡/h
Operating System:	Window7/8/9	Printer Width:	Max90*60cm
Printing Type:	Glass Acrylic Board Wood Board Metal Leather And So On	Port:	Shanghai Port Or As Customer's Requirement

Product Application

Big Color small size uv flatbed printer can print on roraty and flat material by one printer,It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

Product Description

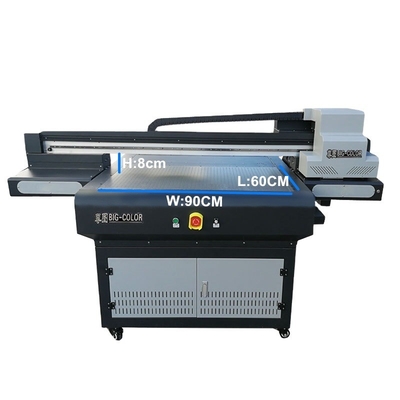

SPECIFICATIONS FOR ZT-9060
Product Name	9060 uv flatbed printer
Model	ZT9060
Printer head	1/2/3 tx800 heads(or 4720)
Speed	6.5m2/h(Production mode) / 5.5m2/h(Precision mode) / 4.5m2/h(High precision mode)
Print size	100mm70mm (3.93in2.75in / 0.32ft*0.22ft)
Maximum Resolution	720*4320 dpi
Ink	4 color +white +varnish
Printing Type	Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Machine Dimension	2.121.51.22m
packing size	2.561.441.50M=5.53CBM

Total 3 pcs UV water cooling lamp

* 2 pcs big power uv lamp for color +1 uv lamp for varnish to make sure enough power even by high speed

* Longer working life

Auto Height sensor

equipped with auto height , make the printing work simply when use different kinds of material

Mug cup printing function

*Cup printing mould fix on machine back side, no need to assembly,.

*It can print not only bottle but also mug cup and so on.

Enhance body frame body

Steel structure frame body , stronger enough and not easy to transformation

More than 12 platform support to ensure the platform accuracy into 0.2mm

Double Screw rob on y direction

Double screw bar connect on Y direction. make sure the move accuracy.

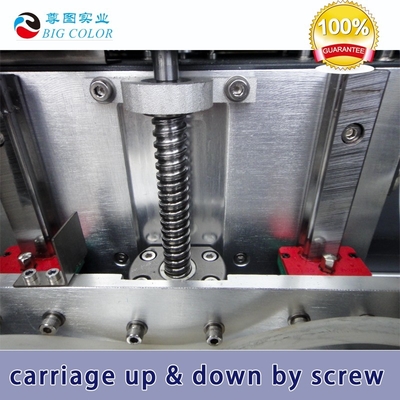

Carriage up and down on Z axis

Max printing height 8cm

Carriage lift type by Z axis, movement more stable than table lift mode or beam lift mode.

Hard oxidation PTFE vacuum platform

*Hard oxidation means scratch-resistant of the platform. you could use even knife to scratch the surface if have UV ink on it.

*PTFE Vacuum platform means the platform parallelism tolerance more less than 0.5mm in the whole area and then with suction fan inside.

Stainless steel auto up and down capping unit

CNC aluminum carriage plate

For service

1) we could support you import agent service if you don't know how to import goods to your country

2) When you got machine, we will teach you how to install machine step by step by teamview or any desk. also there are lots of instruction video to help you know better.

3) All machine with necessary parts and software and make sure you could use printer directly , no other extra payment.

Model No	Print head	Printing area	Max height	Speed	Color
A3-UV-single head	1 pcs Epson DX8	40*30cm	15cm	120sec/page (A3)	CMYK+W
A3-UV/DTG-double head	2 pcs Epson DX8	40*30cm	15cm	80sec/page (A3)	CMYK+W+V
A3-DTG-single head	1 pcs Epson DX7	40*30cm	15cm	120sec/page (A3)	CMYK+W
A2-UV/DTG-doube head	2 pcs Epson DX8	40*60cm	15cm	60sec/page (A3)	CMYK+W+V
9060-dx8	3 pcs Epson DX8	100*70cm	8cm	4.5m²/h	CMYK+W+V
9060-4720	3 pcs Epson 4720	100*70cm	8cm	10m²/h	CMYK+W+V
1610-dx8	3 x Epson DX8	160*100cm	25cm	6.5m²/h	CMYK+W+V
1610-4720	3 x Epson 4720	160*100cm	25cm	12m²/h	CMYK+W+V
2513-dx8	3 pcs Epson DX8	250*130cm	8cm	6.5m²/h	CMYK+W+V
2513-4720	3 pcs Epson 4720	250*130cm	8cm	12m²/h	CMYK+W+V

Blue color also available

If you want to other color, please kindly contact with us

Our Exhibition

Our Factory

Certifications

Samples Display

Wine bottle

Note book

Phone case

Mug or cup

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Size	2.561.441.50M=5.53CBM
Weight	0.38 T
Packaging Details	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
