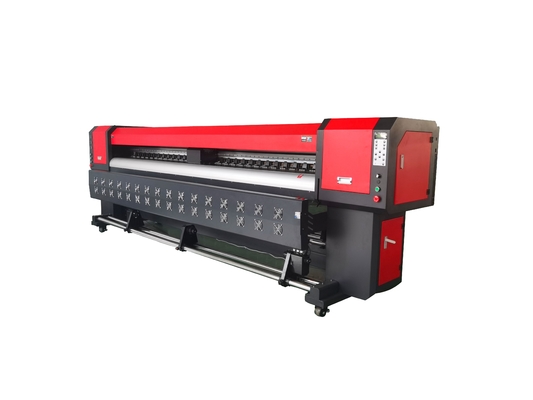

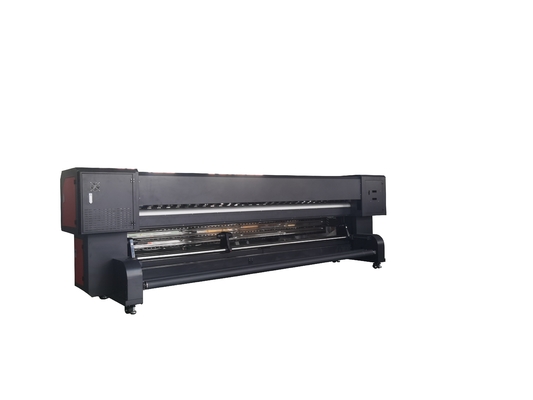

3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V

3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V

Large Image :  3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V

Product Details:
Place of Origin: Anhui, China
Brand Name: BIG COLOR
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $12,000.00/sets 1-4 sets
Packaging Details: The normal package is stronger wooden box with metal structure inside(Size: L*W*H). If export to European countries, the wooden box will be fumigated.If container is too tight, we will use PE film for packing or pack it according to customers special reque
Supply Ability: 60 Set/Sets per Month
Contact Now

3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V

Description
Type: Inkjet Printer Print Dimension: 3200mm, Max 3.2M
Applicable Industries: Printing Shops, Advertising Company Condition: New
Plate Type: Roll-to-Roll Printer Use: Paper Printer, Label Printer, Card Printer, Cloths Printer
Automatic Grade: Automatic Color & Page: Multicolor
Voltage: 220V Dimensions(L*W*H): 445*85*142cm
Weight: 680.0 KG Warranty: 13months
Ink Type: Eco Solvent Ink Key Selling Points: Multi Color
Marketing Type: Hot Product 2022 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 13months
Core Components: Motor, Pump, Board System Product Name: ZT 3200DH
Printhead: 3PCS 3200 A1 Head Print Speed: 60sq.m./h
Resolution: 720*3600dpi Color: 4colors(K C M Y LC LM W V)
Printing Material: PVC Film Paper Photo Paper Leather Print Height: 1-5mm Adjustable
RIP Software: Maintop (photoprint For Optional) Operating System: WIN7,WIN8,WIN10
Port: Shanghai

Product Description

a. 4 color  optional(K C M Y )

b. Newly printing control system can control for 4 color or 6 color printing, more choice for all kinds of custom.

c. Advantage feather technology

d. Special ink dot control technology, the ink drop range could be 1.5pl to 14pl. Make sure the best saturation and printing quality , or avoid of banding.

e. Boards system & Control software can compatible on all Epson 4720 printhead. Change head but no need to change boards.

f. Ink pump pressure adjustable, easier to clean printhead or pump ink, save ink and your time. Meanwhile the material memory function could keep more than 10 kinds of material stepping date.

g. One of the best boards control system have been used on our printer, and more than 72 hours tested before shipping, guarantee the best quality.


Model
ZTUV3220DH
Printhead
400*8 Nozzles
Print Width
Max 3.2m
Speed
Single Color
Triple Color
Production Mode
33 sq.m/h
98  sq.m/h
Precision Mode
25  sq.m/h
73  sq.m/h
High Precision
16  sq.m/h
49  sq.m/h
Maximum Resolution
720*3600 dpi
Print Height
1mm to 5mm adjustable
Ink
4-COLOR ( K, C, M, Y)
Printing Types
PP, Coated, Photo paper, Light sheet, Canvas and so on.
Data Interface
USB.2.0 high speed interface transfer system
Working Environment
Temperature: 20℃-28℃          Humidity: 40%-60%
Power
50-60HZ,  800W-3500W, AC 220V
Operation system
WindowsXP, Windows7, Windows8, Windows10
Printer Dimension
4450mm*850mm*1420mm
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 0
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 1

Machine Parts

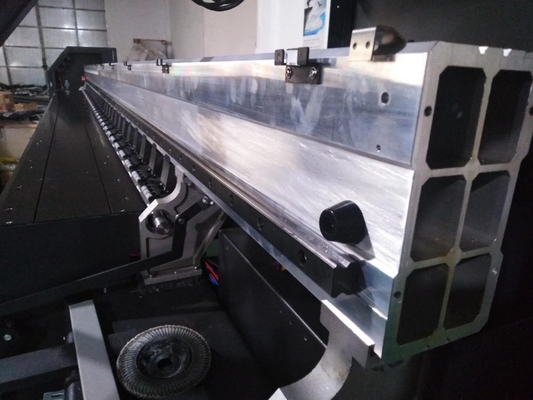

Name: HIWIN Guide Rail

Brand: HIWIN

Original: Japan


3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 2
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 3
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 4
Samples Display
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 5
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 6
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 7
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 8
Company Profile
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 9
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 10
Certifications
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 11
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 12
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 13
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 14
Our Service
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 15

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 16

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 17
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 18
Packing & Delivery
3200 Print Heads 3.2m 10ft Roll to Roll Inkjet Printer for PVC Material WIN7 220V 19
Packaging
Size
4.54m*1.14m*1.45m=7.6cbm
Weight
730kg



Packaging Details
Port:shanghai or as customer's request
all Wooden cases are non fumigation type for overseas
