Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9

Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9

Large Image :  Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9

Product Details:
Place of Origin: Anhui, China
Brand Name: Big-color
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $7,200.00/sets 1-9 sets
Packaging Details: The normal package is stronger wooden box with metal structure inside(packaging size: 2300*1400*1500mm). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to cu
Contact Now

Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9

Description
Type: Inkjet Printer Print Dimension: 90*60cm
Applicable Industries: Building Material Shops, Restaurant, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company Condition: New
Plate Type: Flatbed Printer Use: Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer
Automatic Grade: Automatic Color & Page: Multicolor
Voltage: 220v/110v Dimensions(L*W*H): 2120*1500*1220mm
Weight: 380 KG Warranty: 1 Year, 1 Year
Ink Type: Uv Ink Key Selling Points: High Productivity
Marketing Type: Ordinary Product Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 13 Months
After-sales Service Provided: Video Technical Support Product Name: UV Flatbed Printer
Printing Material: Metal,ceramic,acrylic Board,wood,leather And So On Print Speed: 6.5㎡/h
Operating System: Window7/8/9

Product Description

Product Application

Big Color small size uv printer flatbed can print on roraty and flat material by one printer. It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

SPECIFICATIONS FOR ZT-6090
Product Name
uv6090  flatbed printer
Model
ZT6090 uv printer
Printer head
3 pc TX800/4720/ 3200U1 head
Speed
7.5m2/h(Production mode)  / 5.5m2/h(Precision mode) / 4.5m2/h(High precision mode)
Maximum Resolution
720*4320 dpi
Ink
4 color +white +varnish
Printing Type
Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Connect port
USB3.0 High speed transfer port
Machine Dimension
1.5*1.6*1.38m
packing size
1.85*1.69*1.05m=3.282
Model No
Print head
Printing area
Printing height
Speed
Color
6090-dx8
3 pcs Epson DX8
600*900mm
250mm
4.5m²/h
CMYK+W+V
6090-dx9
3 pcs Epson xp600
600*900mm
250mm
4.5m²/h
CMYK+W+V
6090-4720/3200
3 pcs Epson 4720
600*900mm
250mm
7.5m²/h
CMYK+W+V
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 0
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 1
System:
Much more protessional and more stable than desktop modified printer. Control the color freely.
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 2

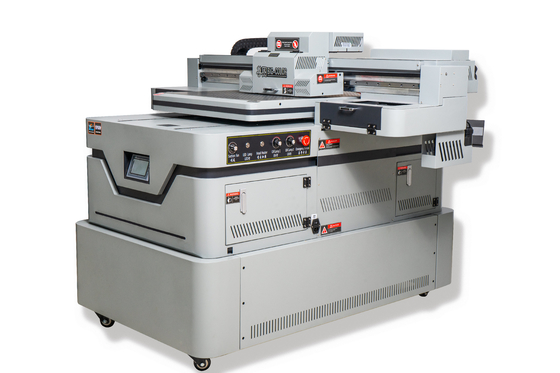

The front of printer.

Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 3

The side of printer.

Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 4

No based table type.

Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 5
No based table type.

Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 6
LCD Touch Control Panel:
LED touch screen, more convenient operation
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 7
CNC aluminum beam & PTFE vacuum platform.
CNC alumimum beam is good material for good printing.The main function is to ensure the stability of the printing process
PTFE vaccum platbed will guarantee strong suction for printing material,Especially for light materials, ensure that it will not move during the printing process
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 8
Rotary & Mug cup Print Unit.
Both flatbed printing and rotary printing(for bottle and mugs)
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 9
Stronger CNC Machine Frame：
16 position adjustable position for vaccum table.
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 10
Auto Height Sensor：
It can automatically measure the printing height, saving a lot of labor and time for you.
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 11
Reliable Board System.
Two small fan is installed on the board to cool down the board card and prolong the service life of the board card.
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 12
Multi-function button：
Poweder machine control Unit: Powder drop speed, Powder shake speed, heater temperature adjustable.
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 13

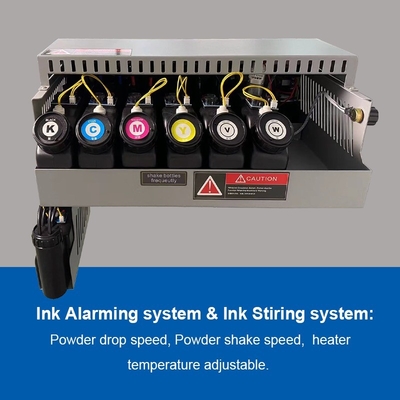

Ink Alarming system & Ink Stiring system:
Powder drop speed, Powder shake speed, heater temperature adjustable.
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 14
Stainless steel capping station
Stainless steel capping station, corrosion resistance, long service life
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 15
Stronger Screw Bar on Yaxis:
The printing movement of the machine depends on the screw.We use many stable screw to guaranteed quality.
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 16
3pcs Big Water cooling Lamp.

Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 17
Dual Fan Body Cooling System:

Different head optional for different request

3200 head:
higher head cost, but faster printing speed
it is fit for printing factory choose
DX8 head:
Lower head cost, but speed slower than 3200 head
it is fit for home work usage
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 18
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 19

Main Features

1) Not only can print on flatbed material but also can printer cylinders.

2) Automatic stirring system for white ink and lacking ink alarming system.

3) PTFE cellular flatform,durable and stable.

4) Carriage height could reach to 250mm ,and it can work on 3 heads by varnish+white+color or even 4 heads.

5) Support for multiple printing on same picture by one time,fit for most special production request .

6) Our Big color have focus on printer research manufacture for more than 10 yeas, we also work on OEM printing machine. so we could also give you best suggestion and solution for your printing request if you need.


CE Certifications
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 20


Sample
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 21








Wine bottle







leather

sheath
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 22
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 23






Phone case








Mug or cup
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 24
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 25
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 26
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 27
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 28
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 29
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 30
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 31
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 32
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 33
Related Products
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 34

UV DTF FILM


Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 35

DTF PRINTER for 30cm


Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 36

A2/A3 uv flatbed printer


Our Service
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 37

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 38

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 39
Product packaging
Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9 40
uv printer Packaging
size
1.85*1.69*1.05M=3.3CBM
weight
0.3T



Packaging
Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
