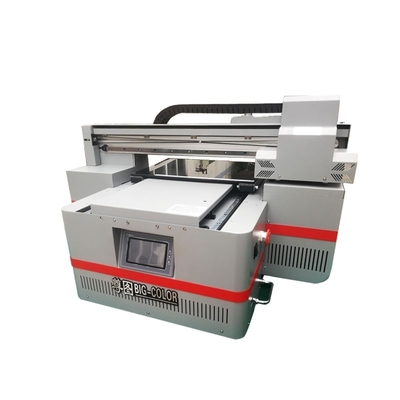

Double DX8/TX800 Printhead A2 LED UV Flatbed Digital Printer for Multi Color Printing

Name: Double DX8/TX800 Printhead A2 LED UV Flatbed Digital Printer for Multi Color Printing
Brand: Anhui Big Color Digital Technology Co., Ltd.
Availability: InStock

All Products

UV Flatbed Printer
(149)

DTF Printer Machine
(43)

Eco Solvent Printer
(32)

DTG Printer Machine
(10)

UV Roll to Roll Printer
(27)

Solvent Printer Machine
(5)

Sublimation Printer Machine
(8)

Hybrid Printer Machine
(4)

Water Based Printer
(1)

Printer Spare Parts
(24)

Printer Ink
(9)

Ungrouped
(1)

I'm Online Chat Now

Double DX8/TX800 Printhead A2 LED UV Flatbed Digital Printer for Multi Color Printing

Large Image : Double DX8/TX800 Printhead A2 LED UV Flatbed Digital Printer for Multi Color Printing

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Big-color
Certification:	CE,ROHS,MSDS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$4,000.00/sets 1-5 sets
Packaging Details:	wooden box 77cm112cm69cm

Contact Now

Double DX8/TX800 Printhead A2 LED UV Flatbed Digital Printer for Multi Color Printing

Description

Condition:	New	Dimensions(LWH):	6310156cm
Plate Type:	Flatbed Printer	Weight:	KG
Automatic Grade:	Automatic	Color & Page:	Multicolor
Use:	Bill Printer, Card Printer, Label Printer, Paper Printer, Tube Printer, Cloths Printer	Voltage:	220v
Applicable Industries:	Garment Shops, Home Use, Retail, Printing Shops, Other, Advertising Company	Warranty:	13month, 13 Months
Print Dimension:	400mm*600mm	Ink Type:	Uv Ink
Key Selling Points:	Multi Color	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	13 Months	Core Components:	Other, Motor, Boards System
Application:	Flat Items	Printing Material:	Metal,ceramic,acrylic Board,wood,leather And So On
Printhead:	TX800/dx8	Print Speed:	120second/A3
Type:	Inkjet Printer	Ink Colors:	CMYK+White+Varnish
Operating System:	Win7/win10	Port:	Shanghai Port

Model No	Print head	Printing area	Printing height	Speed	Color
A3-UV-single head	1 pcs Epson DX8	40*30cm	15cm	120sec/page (A3)	CMYK+W
A3-UV-double head	2 pcs Epson DX8	40*30cm	15cm	80sec/page (A3)	CMYK+W+V
A3-DTG-single head	1 pcs Epson DX7	40*30cm	15cm	120sec/page (A3)	CMYK+W
A2-UV-doube head	2 pcs Epson DX8	40*60cm	15cm	60sec/page (A3)	CMYK+W+V
9060-dx8	3 pcs Epson DX8	100*70cm	8cm	4.5m²/h	CMYK+W+V
9060-4720	3 pcs Epson 4720	100*70cm	8cm	10m²/h	CMYK+W+V
1610-dx8	3 x Epson DX8	160*100cm	25cm	6.5m²/h	CMYK+W+V
1610-4720	3 x Epson 4720	160*100cm	25cm	12m²/h	CMYK+W+V
2513-dx8	3 pcs Epson DX8	250*130cm	8cm	6.5m²/h	CMYK+W+V
2513-4720	3 pcs Epson 4720	250*130cm	8cm	12m²/h	CMYK+W+V

Product Description

Product Application

Big Color small size uv printer can print on rotary and flat material by one printer,It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

SPECIFICATIONS FOR ZT-4060
Product Name	a2 uv flatbed printer
Model	ZT4060
Printer head	2 pc tx800 head(dx8)/4720
Speed	A3: 60seconds. A4: 70 seconds
Maximum Resolution	720*4320 dpi
Ink	K C M Y W V 4 COLOR +WHITE+VARNISH
Printing Type	Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Max Printing heigh	15 cm for standared (20cm for special order)
Rip software	Maintop 6 uv version for standared & photoprint uv 12 for optional
Machine Dimension	1.141.090.76m
UV lamp	2 UV LED LAMP For water coolling

High level mode 4060 uv printer,vaccum flatbed(optional）

Click on the image and then you can watch the live video

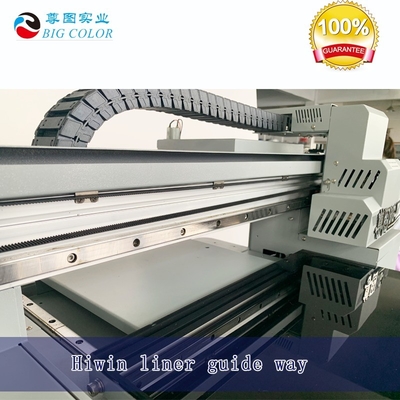

Famous HIWIN brand guide rail way

Famous supplier brand in the industry, strong guide rail, high precision

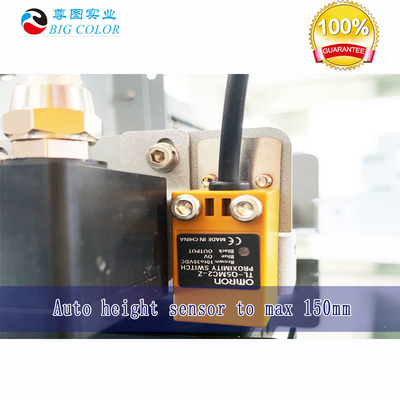

auto height sensor to max 150mm

Intelligent control of printhead printing height, more accurate and convenient.Other sellers use manual controls

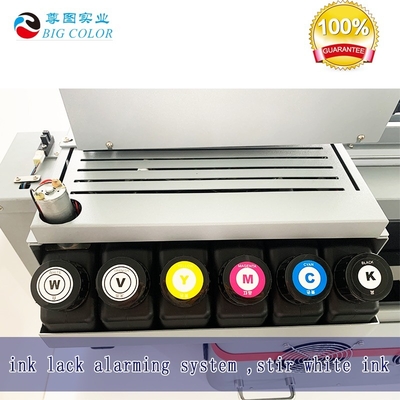

Ink system:stir and alarm

Lack of ink when the alarm sound, timely add ink to prevent printing interruption

Stirring system, can better protect the printheads, prolong the service life

multi-functional

1.head heat:used for cold weather

2.emergency stop :

3.rotary-flatbed switch

height 150mm

Free adjustment of height makes the machine a wide range of applications and can print high materials

wisible work window.

Machine use clamshell model.User can install printhead easily

Main Features

1) White+color print at one time.

2) Hiwin liner and silence chain

3) Water cooling uv led lamp

4) Maintop or photoprint rip software

5) Auto height setting sensor.

6) White ink stirting & ink alarming system

Certifications

Sample Display

Our Exhibition

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1.141.090.76m=0.95
Packaging Details	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Delivery
Delivery Time	7 days after payment
Port	Shanghai port or as customer's request.

FAQ

1. Do you offer free printing samples?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount .

3. What’s your payment method?
Payment method is T/T , Western Union, paypal.

4. If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly,will send an
overseas engineer service to you.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken
parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
