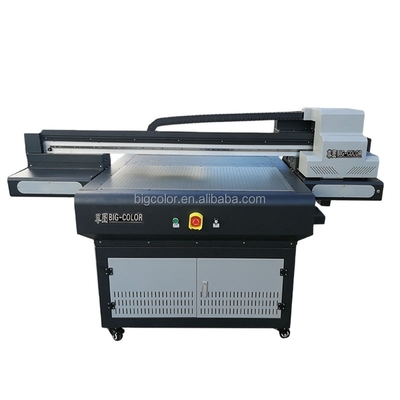

Automatic Grade ZT Multicolor 9060 Flatbed UV Printer 3 TX800 Heads and Direct Printing

Large Image : Automatic Grade ZT Multicolor 9060 Flatbed UV Printer 3 TX800 Heads and Direct Printing

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Big-color
Certification:	CE,ROHS,MSDS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$7,000.00/sets 1-9 sets
Packaging Details:	The normal package is stronger wooden box with metal structure inside(packaging size: 230014001500mm). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to c

Contact Now

Automatic Grade ZT Multicolor 9060 Flatbed UV Printer 3 TX800 Heads and Direct Printing

Description

Type:	Inkjet Printer	Print Dimension:	100mm*70mm
Applicable Industries:	Printing Shops, Advertising Company	Condition:	New
Plate Type:	Flatbed Printer	Use:	Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer
Automatic Grade:	Automatic	Color & Page:	Multicolor
Voltage:	220V/110V	Dimensions(LWH):	212015001220mm
Weight:	380 KG	Warranty:	13 Months
Ink Type:	Uv Ink	Key Selling Points:	High Productivity
Marketing Type:	Hot Product 2022	Machinery Test Report:	Not Available
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	13 Months
Core Components:	Motor, Engine, Boards System	Product Name:	Multicolor Uv Flatbed Printer
Ink Type:	UV Curable Ink/UV Hard Ink/UV Soft Ink	Application:	Flat Items And Rotary Items
Printing Material:	Metal,ceramic,acrylic Board,wood,leather And So On	Color:	CMYK+White+Varnish
Print Head:	TX800	Printing Size:	35.43*23.62in
Operating System:	Win7/win10	After Warranty Service:	Video Technical Support
Port:	Shanghai

Model No	Print head	Printing area	Printing height	Speed	Color
A3-UV-single head	1 pcs Epson DX8	40*30cm	15cm	120sec/page (A3)	CMYK+W
A3-UV/DTG-double head	2 pcs Epson DX8	40*30cm	15cm	80sec/page (A3)	CMYK+W+V
A3-DTG-single head	1 pcs Epson DX7	40*30cm	15cm	120sec/page (A3)	CMYK+W
A2-UV/DTG-doube head	2 pcs Epson DX8	40*60cm	15cm	60sec/page (A3)	CMYK+W+V
9060-dx8	3 pcs Epson DX8	100*70cm	8cm	4.5m²/h	CMYK+W+V
9060-4720	3 pcs Epson 4720	100*70cm	8cm	10m²/h	CMYK+W+V
1610-dx8	3 x Epson DX8	160*100cm	25cm	6.5m²/h	CMYK+W+V
1610-4720	3 x Epson 4720	160*100cm	25cm	12m²/h	CMYK+W+V
2513-dx8	3 pcs Epson DX8	250*130cm	8cm	6.5m²/h	CMYK+W+V
2513-4720	3 pcs Epson 4720	250*130cm	8cm	12m²/h	CMYK+W+V

Product Application

Big Color small size uv flatbed printer can print on roraty and flat material by one printer,It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

Product Description

SPECIFICATIONS FOR ZT-9060
Product Name	9060 uv flatbed printer
Model	ZT9060
Printer head	3 tx800 heads
Speed	6.5m2/h(Production mode) / 5.5m2/h(Precision mode) / 4.5m2/h(High precision mode)
Maximum Resolution	720*4320 dpi
Ink	4 color +white +varnish
Printing Type	Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Machine Dimension	2.121.51.22m
packing size	2.561.441.50M=5.53CBM

Special capping cleaning system

Equiped with 3 separate ink pump.can pump and cleaning separate

Save ink and improve cleaning efficiency

CNC aluminum beam&PTFE cellular platform

Machine use CNC stronger aluminum beam and cellular platform

which make sure the printing with high resolution and stronger vaccum system

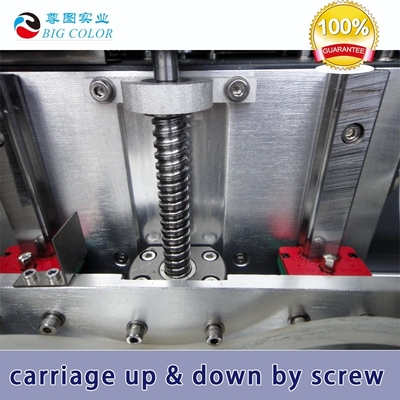

Double screw rob system

Machine installed by 2 screw rob system.Which make carriage and beam move more stable and longer working life

Stable board with cooling fan

Reliable boards system work on stable,high precision machine body ,it can work on any line.When the temperature is high, there is a cooling fan automatically cool down.

3 pcs uv led lamp

The ink printed by the print head is quickly dried at high temperature to ensure a clean and bright pattern.

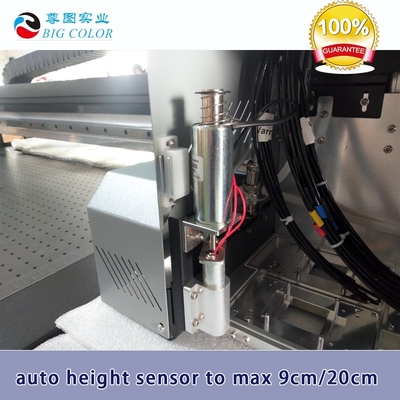

Automatically detect the height
Carriage height could reach to 8cm ;and it can work on 3 heads by varnish+white+color,Print speed faster,and control easier.

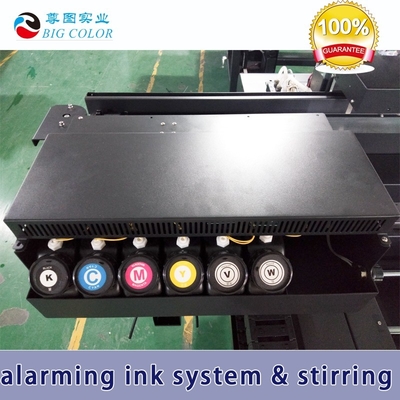

Automatic strring system
Automatic stirring system for white ink and lacking ink alarming system.Making sure non-stop working.Together with alarm function for ink shortage.

2 heads for choose

Main Features

1) Not only can print on flatbed material but also can printer cylinders.

2) Automatic stirring system for white ink and lacking ink alarming system.

3) PTFE cellular flatform,durable and stable.

4) Carriage height could reach to 8cm ,and it can work on 3 heads by varnish+white+color.

5) Support for multiple printing on same picture by one time,fit for most special production request .

Our Exhibition

Our Factory

Certifications

Samples Display

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	2.561.441.50M=5.53CBM
Weight	0.38 T
Packaging Details	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Delivery
Delivery Time	7 days after payment
Port	Shanghai port or as customer's request.
