6090 UV Printer for Flatbed and Rotary Material Automatic Grade Automatic 110VV Voltage

Large Image : 6090 UV Printer for Flatbed and Rotary Material Automatic Grade Automatic 110VV Voltage

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Big Color

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$6,600.00/sets 1-4 sets
Packaging Details:	The normal package is stronger wooden box with metal structure inside(Size: L185cmW169cmH105cm). If export to European countries, the wooden box will be fumigated.If container is too tight,we will use PE film for packing or pack it according to customers

Contact Now

6090 UV Printer for Flatbed and Rotary Material Automatic Grade Automatic 110VV Voltage

Description

Type:	Inkjet Printer	Print Dimension:	900mm*600mm, A1
Applicable Industries:	Garment Shops, Printing Shops, Advertising Company	Condition:	New
Plate Type:	Flatbed Printer	Use:	Paper Printer, Label Printer, Card Printer, Cloths Printer
Automatic Grade:	Automatic	Color & Page:	Multicolor
Voltage:	110V\220V	Dimensions(LWH):	1500mm1600mm1380mm
Weight:	320 KG	Warranty:	13 Months
Ink Type:	UV Ink	Key Selling Points:	Multi Color
Marketing Type:	Hot Product 2022	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	13 Months
Core Components:	Motor, Engine, Board System	Print Head:	3 Pieces Tx800
Print Speed:	4.5 Sq.m/h	Color:	CMYK+White+ Varnish
Resolution:	720*4320 Dpi	Print Height:	3mm-240mm
RIP Software:	Maintop(main) Photoprint(optional)	Precision:	4.5 M2/h
Power:	1000w-1600W	Operating System:	Windows XP/7/8/10
Interface:	High Speed USB3.0 Transmission Interface

Product Description

Product Application

Big Color small size uv printer flatbed can print on rotaty and flat material by one printer. It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

SPECIFICATIONS FOR ZT-6090
Product Name	uv6090 flatbed printer
Model	ZT6090 uv printer
Printer head	3 pc TX800
Speed	7.5m2/h(Production mode) / 5.5m2/h(Precision mode) / 4.5m2/h(High precision mode)
Maximum Resolution	720*4320 dpi
Ink	4 color +white +varnish
Printing Type	Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Connect port	USB3.0 High speed transfer port
Machine Dimension	1.51.61.38m
packing size	1.851.691.05m=3.282

Model No	Print head	Printing area	Printing height	Speed	Color
6090-dx8	3 pcs Epson DX8	600*900mm	250mm	4.5m²/h	CMYK+W+V
6090-dx9	3 pcs Epson xp600	600*900mm	250mm	4.5m²/h	CMYK+W+V
6090-4720/3200	3 pcs Epson 4720	600*900mm	250mm	7.5m²/h	CMYK+W+V
6090-4H	4pcs Epson DX8	600*900mm	250mm	7.5m²/h	Pre-coating+ CMYK+W+V

System:

Much more protessional and more stable than desktop modified printer. Control the color freely.

	4 head solution optional
1.	Pre-coating+white +color+varnish Pre-coating means if you printing on metal, glass, tile, you no need to use hand to swap pre-coating in advance. our printhead can print for you directly.
2	Printed glue+white+color+varnish This use for special PET film to print glue on the PET film, then the PET film adhesive on material
3	White+color+high light varnish+ silver varnish This is for 2 different varnish printing. then make sure your picture have different emboss effect
4	2 head for white+ 2 heads for color No varnish, but the print speed is double than above solutions.
	All solution we could support you the necessary ink please feel free to talk with us

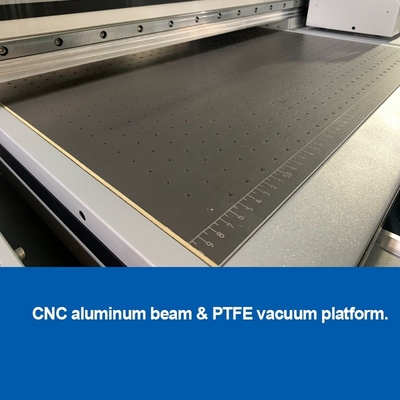

CNC aluminum beam & PTFE vacuum platform.

CNC alumimum beam is good material for good printing.The main function is to ensure the stability of the printing process

PTFE vaccum flatbed means the platform hardness and can even use knife to scratch on it without any hurt. And also with strong suction function,Especially for light materials, ensure that it will not move during the printing process

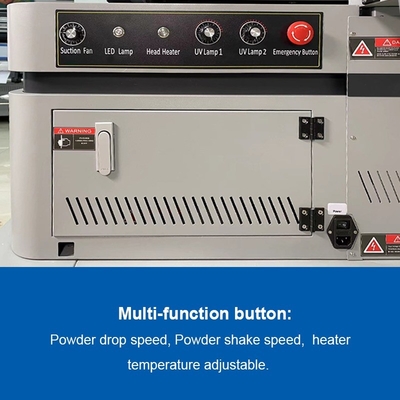

Multi-function button：

Poweder machine control Unit: Powder drop speed, Powder shake speed, heater temperature adjustable.

Stronger CNC Machine Frame：

16 position adjustable position for vaccum table.

LCD Touch Control Panel:

LED touch screen, more convenient operation

Reliable Board System.

Two small fan is installed on the board to cool down the board card and prolong the service life of the board card.

Rotary & Mug cup Print Unit.

Both flatbed printing and rotary printing(for bottle and mugs)

_{Machine could also be installed as table type.}

_{the price could be also lower.}

Auto Height Sensor：

It can automatically measure the printing height, saving a lot of labor and time for you.

Ink Alarming system & Ink Stiring system:

Powder drop speed, Powder shake speed, heater temperature adjustable.

Stronger Screw Bar on Yaxis:

The printing movement of the machine depends on the screw.We use many stable screw to guaranteed quality.

3pcs Big Water cooling Lamp.

Dual Fan Body Cooling System:

Fan cooling system for machine body and boards system cooling. It can extend the working life of boards system and machine parts.

Different head optional for different request

3200 head:

higher head cost, but faster printing speed
it is fit for printing factory choose

DX8 head:

Lower head cost, but speed slower than 3200 head
it is fit for home work usage

Main Features

1) Not only can print on flatbed material but also can printer cylinders.

2) Automatic stirring system for white ink and lacking ink alarming system.

3) PTFE cellular flatform,durable and stable.

4) Carriage height could reach to 250mm ,and it can work on 3 heads by varnish+white+color or even 4 heads.

5) Support for multiple printing on same picture by one time,fit for most special production request .

6) Our Big color have focus on printer research manufacture for more than 10 yeas, we also work on OEM printing machine. so we could also give you best suggestion and solution for your printing request if you need.

CE Certifications

Sample

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

1. Do you offer printing free samples based my design?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount

when you machine order less than 4 sets. if more than 5 sets or need us design for you, the date can be negotiation.

3. What’s your payment method?
Payment method is T/T , Western Union, Paypal.

4. If I have some technical problem, how can you help us to solve it?
Firstly, we have lots of teaching video to help you install machine . and then we have engineer to use the Teamviewer and Anydesk to help you finish . Most of engineer have been in our factory for more than 5 years. we are sure you could get best reliable service.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request. Also for OEM model.

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
