ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software

I'm Online Chat Now

ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software

ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software

Large Image :  ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software

Product Details:
Place of Origin: Anhui, China
Brand Name: Big-Color
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $100.00 - $4,800.00/sets
Packaging Details: The normal package is stronger wooden box with metal structure inside(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to customers special reque

ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software

Description
Type: Inkjet Printer Print Dimension: A2
Applicable Industries: Printing Shops, Other, Advertising Company Condition: New
Plate Type: Flatbed Printer Use: Paper Printer, Label Printer, Card Printer, Tube Printer
Automatic Grade: Automatic Color & Page: Multicolor
Voltage: 220V/110V Dimensions(L*W*H): 970*1010*560mm
Weight: 90 KG Warranty: 13months
Ink Type: Uv Ink Key Selling Points: Bottle Print Function
Marketing Type: Hot Product 2022 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 13months
Core Components: Motor, Boards System Product Name: A2 UV Printer Machine
Print Head: TX800 Head*2pcs Priting Color: 6color+w+v
Print Speed: 140sec/A2 Page Printing Size: 40*60cm
Printing Height: 120MM Printing Bottle Size: Max 70mm Diameter
Printer Platform Type: Suction Vacuum Table RIP Software: Maintop(main) Photoprint(optional)
Print Resolution: Max 720*4320dpi

Product Description


Big Color small size uv printer can print on rotary and flat material by one printer,It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

SPECIFICATIONS FOR ZT-4060
Product Name
a2 uv flatbed printer
Model
ZT4060
Printer head
2 pc tx800 head(dx8)/xp600 head(dx9)
Speed
A3: 80seconds.       A2: 140 seconds
Maximum Resolution
720*4320 dpi
Ink
K C M Y W V  4 COLOR +WHITE+VARNISH
Printing Type
Glass ,Acylic board,Wood,Board,Metal,Leather and so on

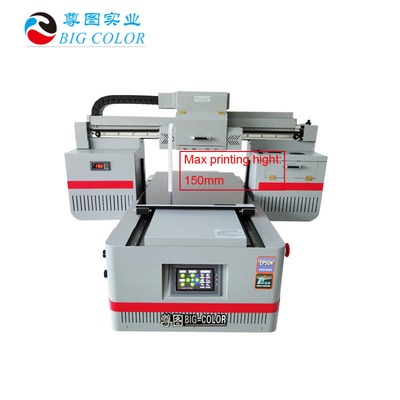

Max Printing heigh
15 cm for standared   (20cm for special order) for glass plate tyep
12 cm for vacuum plate type
80mm diameter for bottle
Rip software
Maintop 6 uv version for standared & photoprint uv 12 for optional
Machine Dimension
1.14*1.09*0.76m
UV lamp
2 UV LED LAMP For water coolling
High level mode 4060 uv printer,vaccum flatbed(optional)
Click on the image and then you can watch the live video
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 0
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 1
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 2
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 3
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 4
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 5
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 6
Hard oxidation platform, high printing resolution and easy to clean to surface even by knife.
Vacuum platform can suction thick material.
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 7
LCD Touch panel onto machine.
Easy to control.
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 8
Famous Hiwin liner guide way. high precision and silence during moving.
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 9
Auto height sensor unit
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 10
CNC aluminum carriage.
Stable and high accuracy
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 11
Stainless steal capping system. auto up and down to clean and protect the printhead. extend the head working life
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 12
Separately UV lamp control snob. it could adjust the varnish lamp power only. making sure the varnish print light enough.
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 13
Printhead heater button. it is make sure the print head can work even in the lower temperature environment.
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 14


NEW UV DTF film printing instruction:

What is UV PET film

It is a new technology since 2021, it is including A and B two different film.
firstly, printed by UV white+color +varnish ink on A film
secondly, laminate the B film with onto A.
thirdly, you could cut it and pasted onto any surface.
The advantages:
it is fit for any shape of surface,
Metal, wood, glass, stone all kindly of material is ok.
Resistance of 80℃ temperature after pasted.
How to choose a good quality UV DTF film:
Easy to slip out the cover film
No glue left on to surface
Firm enough.
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 15
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 16
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 17
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 18
Model list of us
Model No
Print head
Printing area
Printing height
Speed
Color
A3-UV-single head
1 pcs Epson DX8
40*30cm
15cm
120sec/page
(A3)
CMYK+W
A3-UV-double head
2 pcs Epson DX8
40*30cm
15cm
80sec/page
(A3)
CMYK+W+V
A3-DTG-single head
1 pcs Epson DX7
40*30cm
15cm
120sec/page
(A3)
CMYK+W
A2-UV-doube head
2 pcs Epson DX8
40*60cm
15cm
60sec/page
(A3)
CMYK+W+V
9060-dx8
3 pcs Epson DX8
100*70cm
8cm
4.5m²/h
CMYK+W+V
9060-4720
3 pcs Epson 4720
100*70cm
8cm
10m²/h
CMYK+W+V
1610-dx8
3 x Epson DX8
160*100cm
25cm
6.5m²/h
CMYK+W+V
1610-4720
3 x Epson 4720
160*100cm
25cm
12m²/h
CMYK+W+V
2513-dx8
3 pcs Epson DX8
250*130cm
8cm
6.5m²/h
CMYK+W+V
2513-4720
3 pcs Epson 4720
250*130cm
8cm
12m²/h
CMYK+W+V
Certifications
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 19
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 20
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 21
Sample Display
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 22
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 23
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 24
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 25
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 26
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 27
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 28
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 29
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 30
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 31
Our Exhibition&Factory
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 32
Our Service
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 33

Pre-Sales Service

* Inquiry and consulting support.


* Sample testing support.

* View our Factory.
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 34

After-Sales Service

* Training how to instal the machine, training how to use the machine.


* Engineers available to service machinery overseas.
ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software 35
FAQ
1. Do you offer free printing samples?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount .

3. What’s your payment method?
Payment method is T/T , Western Union, paypal.

4. If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly,will send an
overseas engineer service to you.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken
parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
