2513 UV Flatbed Printer for Glass Wood Metal PVC Acrylic Leather Printing Technology

Large Image : 2513 UV Flatbed Printer for Glass Wood Metal PVC Acrylic Leather Printing Technology

Product Details:

Place of Origin:	China
Brand Name:	Big-Color
Certification:	CE ROHS MSDS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$14,500.00/sets 1-4 sets
Packaging Details:	The normal package is stronger wooden box with metal structure inside(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to customers special reque

Contact Now

2513 UV Flatbed Printer for Glass Wood Metal PVC Acrylic Leather Printing Technology

Description

Type:	Inkjet Printer	Print Dimension:	250*130cm
Applicable Industries:	Printing Shops, Advertising Company	Condition:	New
Plate Type:	Flatbed Printer	Use:	Paper Printer, Label Printer, Card Printer
Automatic Grade:	Automatic	Color & Page:	Multicolor
Voltage:	220V	Dimensions(LWH):	358179141cm
Weight:	950 KG	Warranty:	13 Months
Ink Type:	Uv Ink	Key Selling Points:	High Productivity
Marketing Type:	Hot Product 2022	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	13 Months
Core Components:	Motor, Board Systems	Product Name:	2513 UV Flatbed Printer
Print Head:	TX800/XP600/i3200U1 Head	Resolution:	720*4320dpi
Color:	CMYK+White+Varnish	Printing Size:	250*130cm
Printing Height:	0mm To 90mm Adjustable	Printing Material:	Leather, Ceramic, Wood, Phone Cells,acrylic Board ,mental And So On
Application:	Flat Items	Operating System:	Windows 10 Windows 7 Professional, Windows 8
Port:	SHANGHAI

Product Description

Product Application

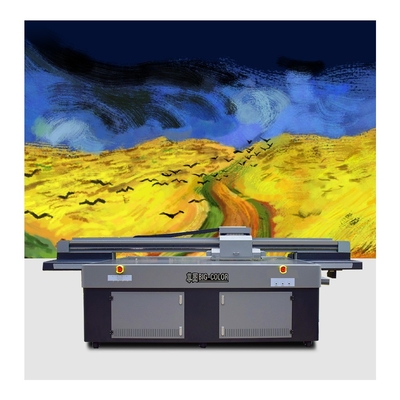

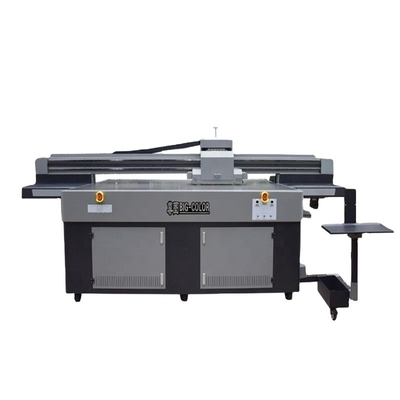

Big Color 2513 uv flatbed printer can print on all kinds of flat material by one printer,It can print colors , white and varnish at same time.

It also support on mirror printing and back printing which means it can work on all kinds of industry production.

Printhead number	3pcs eps3200 printhead
Max printing height	2.5m*1.3m
Optional printing color	4 color+ white+varnish 4 color+ varnish 4 color +4 color
High quality speed	10 sqm/hour(high speed mode) 9 sqm/hour(middle speed mode) 6 sqm/hour(lower speed mode)
Max printing heigh	8cm (carriage up and down mode)
Printing material	Glass, Tile, Acrylic, PP, Metal, Wood, Stone, material and so on.
Rip software	Ultra print/ Maintop/ Photoprint
Picture Mode	PSD/ TIFF/ BMP/ EPS/ JPG
Standared parts	machine body+2 pcs big vacuum fan+ rip software
Environment	25-30℃, 50% humidity, clean
Computer system	Window XP/ Windows 7/ Window 10
Machine size	3580mm1790mm1410mm
Package size	3970mm2350mm1600mm
Machine weight	Net.850kg / Gross.1200kg

Eps3200 printhead 800nozzles*4 lines.

1pc printhead=2.2 pcs DX5 head

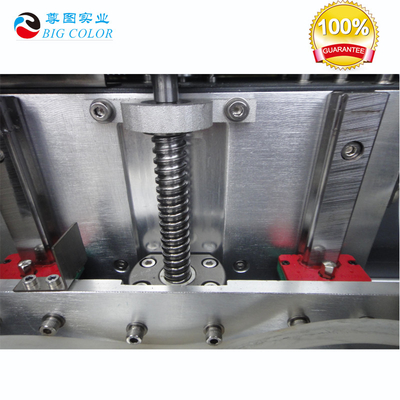

2 pcs srcew bar for Z axis up and down

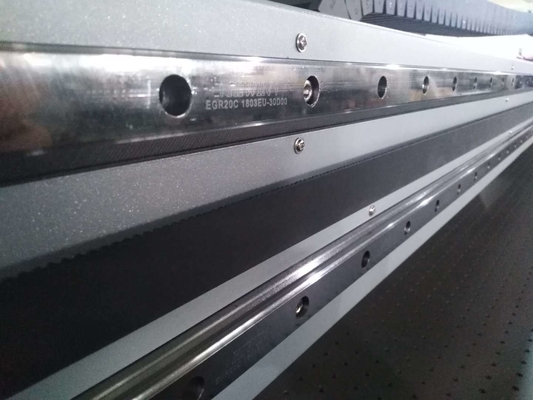

2 PCS Hiwin liner guide way

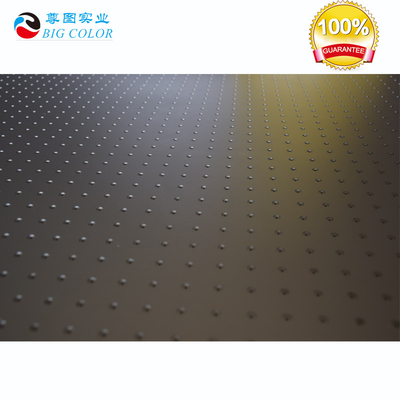

Hard oxidation vacuum platform

PTFE & Hard oxidation platform can resistant of scratch and with high resolution

Powerful vacuum fan to help you suction material flat enough

4 pcs separately fan control unit, help you to save energy.

3 pcs big power uv led water cooling lamp

Main Features

1) White+color+varnish print at one time.

2) Hiwin liner and silence guideway

3) Water cooling uv led lamp

4) Maintop or photoprint rip software

5) Auto height setting & head protect unite

6) White ink stirting & ink alarming system

Certifications

Our Company

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

Packing & Delivery

Packaging
Size	3970mm2350mm1600mm
Weight	900kg
Packaging Details	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

FAQ

1. Do you offer printing free samples based my design?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount

when you machine order less than 4 sets. if more than 5 sets or need us design for you, the date can be negotiation.

3. What’s your payment method?
Payment method is T/T , Western Union, Paypal.

4. If I have some technical problem, how can you help us to solve it?
Firstly, we have lots of teaching video to help you install machine . and then we have engineer to use the Teamviewer and Anydesk to help you finish . Most of engineer have been in our factory for more than 5 years. we are sure you could get best reliable service.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request. Also for OEM model.

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
