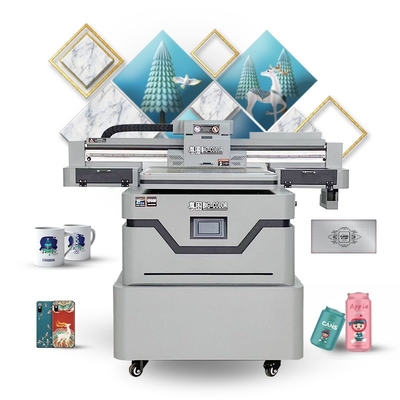

6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing

6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing

Large Image :  6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing

Product Details:
Place of Origin: Anhui, China
Brand Name: Big Color
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $8,900.00/sets 1-2 sets
Packaging Details: Normally we use wooden box for shipping. If export to European countries, the wooden box will be fumigated.If container is too tight we will use PE film for packing or pack it according to customers special request.
Supply Ability: 30 Set/Sets per Month
Contact Now

6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing

Description
Type: Inkjet Printer Print Dimension: 600mm*900mm, A1
Applicable Industries: Garment Shops, Printing Shops, Advertising Company Condition: New
Plate Type: Flatbed Printer Use: Paper Printer, Card Printer, Tube Printer, Cloths Printer
Automatic Grade: Automatic Color & Page: Multicolor
Voltage: 220V Dimensions(L*W*H): 1530*1600*1380mm
Weight: 400 KG Warranty: 13 Month
Ink Type: UV Ink Key Selling Points: High Productivity
Marketing Type: Hot Product 2022 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 13months
Core Components: Motor, Engine, Board System Product Name: ZT 6090DH
Print Head: 3 Pieces I3200 Print Heads Print Width: 600x900mm/23.6*35.4 In
Resolution: 720*4320dpi Advantage: PTFE Cellular Flatform
Application: Print On Flat Items And Rotary Items Print Height: 24cm/9.5in
Precision Mode: 7.5m²/h Color: 4color+white+Varnish
RIP Software: Maintop(main) Photoprint(optional) Port: Shanghai

Product Description

Product Application

Big Color small size uv printer flatbed can print on rotaty and flat material by one printer. It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

SPECIFICATIONS FOR ZT-6090
Product Name
uv6090  flatbed printer
Model
ZT6090 uv printer
Printer head
3 pc i3200 head
Speed
7.5m2/h(Production mode)
Maximum Resolution
720*4320 dpi
Ink
4 color +white +varnish
Printing Type
Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Connect port
USB3.0 High speed transfer port
Machine Dimension
1.5*1.6*1.38m
packing size
1.85*1.69*1.05m=3.282
Model No
Print head
Printing area
Printing height
Speed
Color
6090-dx8
3 pcs Epson DX8
600*900mm
250mm
4.5m²/h
CMYK+W+V
6090-dx9
3 pcs Epson xp600
600*900mm
250mm
4.5m²/h
CMYK+W+V
6090-4720/3200
3 pcs Epson 4720
600*900mm
250mm
7.5m²/h
CMYK+W+V
6090-4H
4pcs Epson DX8
600*900mm
250mm
7.5m²/h
Pre-coating+
CMYK+W+V
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 0
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 1
System:
Much more protessional and more stable than desktop modified printer. Control the color freely.
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 2
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 3
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 4
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 5
CNC aluminum beam & PTFE vacuum platform.
CNC alumimum beam is good material for good printing.The main function is to ensure the stability of the printing process
PTFE vaccum flatbed means the platform hardness and can even use knife to scratch on it without any hurt. And also with strong suction function,Especially for light materials, ensure that it will not move during the printing process
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 6

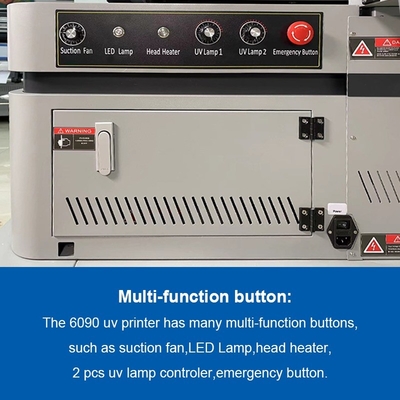

Multi-function button：
Poweder machine control Unit: Powder drop speed, Powder shake speed, heater temperature adjustable.
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 7
Stronger CNC Machine Frame：
16 position adjustable position for vaccum table.
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 8
LCD Touch Control Panel:
LED touch screen, more convenient operation
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 9
Reliable Board System.
Two small fan is installed on the board to cool down the board card and prolong the service life of the board card.
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 10
Rotary & Mug cup Print Unit.
Both flatbed printing and rotary printing(for bottle and mugs)
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 11
Machine could also be installed as table type.
the price could be also lower.

6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 12
Auto Height Sensor：
It can automatically measure the printing height, saving a lot of labor and time for you.
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 13

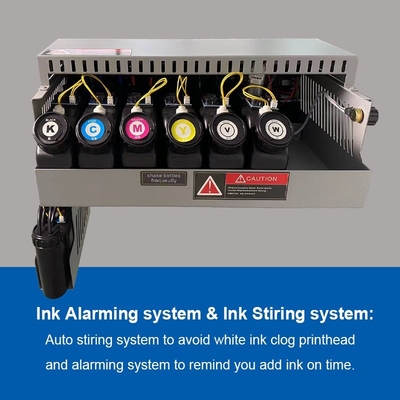

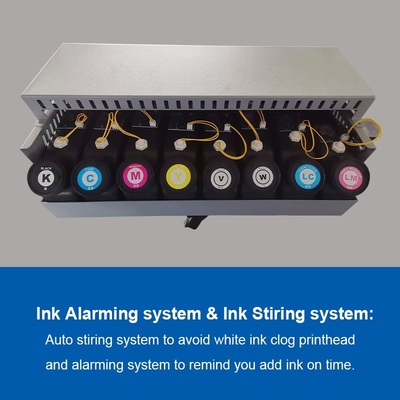

Ink Alarming system & Ink Stiring system:
Powder drop speed, Powder shake speed, heater temperature adjustable.
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 14
Stronger Screw Bar on Yaxis:
The printing movement of the machine depends on the screw.We use many stable screw to guaranteed quality.
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 15
3pcs Big Water cooling Lamp.

6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 16
Dual Fan Body Cooling System:
Fan cooling system for machine body and boards system cooling. It can extend the working life of boards system and machine parts.

Different head optional for different request

3200 head:
higher head cost, but faster printing speed
it is fit for printing factory choose
DX8 head:
Lower head cost, but speed slower than 3200 head
it is fit for home work usage
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 17
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 18
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 19

Main Features

1) Not only can print on flatbed material but also can printer cylinders.

2) Automatic stirring system for white ink and lacking ink alarming system.

3) PTFE cellular flatform,durable and stable.

4) Carriage height could reach to 250mm ,and it can work on 3 heads by varnish+white+color or even 4 heads.

5) Support for multiple printing on same picture by one time,fit for most special production request .

6) Our Big color have focus on printer research manufacture for more than 10 yeas, we also work on OEM printing machine. so we could also give you best suggestion and solution for your printing request if you need.


CE Certifications
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 20


Sample
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 21
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 22
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 23
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 24
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 25
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 26
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 27
Our Service
6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 28

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 29

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

6090 UV Flatbed Printer with High Productivity and Cylinder Mold for Digital Printing 30
FAQ
1. Do you offer printing free samples based my design?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount
when you machine order less than 4 sets. if more than 5 sets or need us design for you, the date can be negotiation.

3. What’s your payment method?
Payment method is T/T , Western Union, Paypal.

4. If I have some technical problem, how can you help us to solve it?
Firstly, we have lots of teaching video to help you install machine . and then we have engineer to use the Teamviewer and Anydesk to help you finish . Most of engineer have been in our factory for more than 5 years. we are sure you could get best reliable service.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request. Also for OEM model.

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
