Product Details:
Place of Origin: Anhui, China
Brand Name: Big Color
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $6,500.00/sets 1-19 sets
Packaging Details: The normal package is stronger wooden box with metal structure inside(Size: L185cm*W169cm*H105cm). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to custome
Supply Ability: 150 Set/Sets per Month
Contact Now

Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine

Description
Type: Inkjet Printer Print Dimension: 600mm*900mm
Applicable Industries: Farms, Retail, Food Shop, Energy & Mining Condition: New
Plate Type: Flatbed Printer Use: Label Printer, Bill Printer
Automatic Grade: Automatic Color & Page: Multicolor
Voltage: 220V/110V Dimensions(L*W*H): 150cm(L)*160cm(W)*138cm(H)
Weight: 280 KG Warranty: 1 Year
Ink Type: UV Ink Key Selling Points: Multi Color
Marketing Type: Hot Product 2022 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Motor, Board Product Name: A1 Size Uv Flatbed Printer
Application: Flat And Rotary Item Color: White+CMYK+Varnish
Printing Material: Acrylic Metal Glass Pen Golf Ball Dtf Film Print Head: TX800
Printing Size: 60cm*90cmcm(24*41") Operating System: Win7, Win8, Win10
Data Interface: USB3.0 High Speed Interface Transfer System RIP Software: Maintop(main) Photoprint(optional)
Brand: Big Color Port: SHANGHAI/YIWU/NINGBO

Product Description



Product Application

Big Color small size uv printer flatbed can print on rotaty and flat material by one printer. It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

Do you still headache to use hand to swap pre-coating?

Do you worry about if dust drop on the material after you swap the coating?

Do you hesitate on how to printing picture on Mirror finished stainless steel without any extra precoating?

We now have solutions for you , 4 heads, one head to print pre-coating advance, then white +color+varnish head working directly.

Easy to control, printing speed is same.

Welcome to check detail with us

SPECIFICATIONS FOR ZT-6090



Product Name
uv6090  flatbed printer


Model
ZT6090 uv printer


Printer head
4 pc TX800


Speed
7.5m2/h(Production mode)  / 5.5m2/h(Precision mode) / 4.5m2/h(High precision mode)


Maximum Resolution
720*4320 dpi


Ink
Pre-coating+4 color +white +varnish


Printing Type
Mirror finished stainless steel ,Glass ,Acylic board,Wood,Board,Metal,Leather and so on


Connect port
USB3.0 High speed transfer port


Machine Dimension
1.5*1.6*1.38m(with the under table, if you don't need that support, also ok)


packing size
1.85*1.69*1.05m=3.282


Model No
Print head
Printing area
Printing height
Speed
Color
6090-dx8
3 pcs Epson DX8
600*900mm
250mm
4.5m²/h
CMYK+W+V
6090-dx9
3 pcs Epson xp600
600*900mm
250mm
4.5m²/h
CMYK+W+V
6090-i3200
3 pcs Epson i3200
600*900mm
250mm
8.5m²/h
CMYK+W+V
6090-4H
4pcs Epson DX8
600*900mm
250mm
7.5m²/h
Pre-coating+
CMYK+W+V
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 0
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 1
System:
Much more professional and more stable than desktop modified printer. Control the color freely.
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 2
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 3
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 4
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 5

4 head solution optional
1.
Pre-coating+white +color+varnish
Pre-coating means if you printing on metal, glass, tile, you no need to use hand to swap pre-coating in advance. our printhead can print for you directly,it can save labor and coating too.
2
Printed glue+white+color+varnish
This use for special PET film to print glue on the PET film, then the PET film adhesive on material
3
White+color+high light varnish+ silver varnish
This is for 2 different varnish printing. then make sure your picture have different emboss effect
4
2 head for white+ 2 heads for color
No varnish, but the print speed is double than above solutions.

All solution we could support you the necessary ink please feel free to talk with us
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 6
CNC aluminum beam & PTFE vacuum platform.
CNC alumimum beam is good material for good printing.The main function is to ensure the stability of the printing process
PTFE vaccum flatbed means the platform hardness and can even use knife to scratch on it without any hurt. And also with strong suction function,Especially for light materials, ensure that it will not move during the printing process
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 7

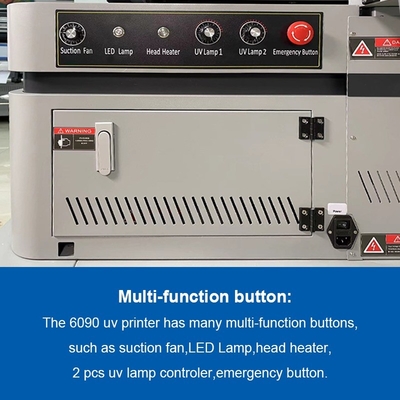

Multi-function button:
The 6090 uv printer has many multi-function buttons,such as suction fan,LED Lamp,head heater,2 pcs uv lamp controler,emergency button.
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 8
Stronger CNC Machine Frame:
16 position adjustable position for vaccum table.
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 9
LCD Touch Control Panel:
You can get more convenient operation from this touch panel,but not control printer from software by computer.And also you can know condition from this part.
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 10
Reliable Board System.
Two small fan is installed on the board to cool down the board card and prolong the service life of the board card.
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 11
Rotary & Mug cup Print Unit.
Both flatbed printing and rotary printing(for bottle and mugs)
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 12
Machine could also be installed as table type.
the price could be also lower,besides,it can reduce wooden box package  size too.

Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 13
Auto Height Sensor:
It can automatically measure the printing height, saving a lot of labor and time for you.
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 14
Ink Alarming system & Ink Stiring system:
Auto stiring system to avoid white ink clog printhead. and alarming system to remind you add ink on time.
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 15
Stronger Screw Bar on Yaxis:
The printing movement of the machine depends on the screw.Ensure the high accuraty on stepping.
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 16
3pcs Big Water cooling Lamp.

Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 17
Dual Fan Body Cooling System:
Fan cooling system for machine body and boards system cooling. It can extend the working life of boards system and machine parts.



Main Features

1) Not only can print on flatbed material but also can printer cylinders.

2) Automatic stirring system for white ink and lacking ink alarming system.

3) PTFE cellular flatform,durable and stable.

4) Carriage height could reach to 250mm ,and it can work on 3 heads by varnish+white+color or even 4 heads.

5) Support for multiple printing on same picture by one time,fit for most special production request .

6) Our Big color have focus on printer research manufacture for more than 10 yeas, we also work on OEM printing machine. so we could also give you best suggestion and solution for your printing request if you need.



CE Certifications
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 18


Sample
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 19









Wine bottle










leather

sheath
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 20
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 21











Phone case








Mug or cup
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 22
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 23
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 24
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 25
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 26
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 27
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 28
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 29
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 30
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 31
Our Service
Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 32



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 33



After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Flatbed Printer A1 Size for Acrylic Metal Glass UV LED Digital Printing Machine 34
FAQ
1. Do you offer printing free samples based my design?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount
when you machine order less than 4 sets. if more than 5 sets or need us design for you, the date can be negotiation.

3. What’s your payment method?
Payment method is T/T , Western Union, Paypal.

4. If I have some technical problem, how can you help us to solve it?
Firstly, we have lots of teaching video to help you install machine . and then we have engineer to use the Teamviewer and Anydesk to help you finish . Most of engineer have been in our factory for more than 5 years. we are sure you could get best reliable service.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request. Also for OEM model.

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
