Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads

Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads

Large Image :  Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads

Product Details:
Place of Origin: Anhui, China
Brand Name: BIG-COLOR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $6,500.00/sets 1-9 sets
Packaging Details: The normal package is stronger wooden box with metal structure inside(Size: L185cm*W169cm*H105cm). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to custome
Supply Ability: 150 Set/Sets per Month
Contact Now

Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads

Description
Condition: New Dimensions(L*W*H): L160CM*140CM*122CM
Plate Type: Flatbed Printer Weight: 280 KG
Automatic Grade: Automatic Color & Page: Multicolor
Use: Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer Voltage: 220V/110V
Applicable Industries: Building Material Shops, Printing Shops, Advertising Company Warranty: 1 Year
Print Dimension: 60cm*90cmcm(24*41") Ink Type: Uv Ink
Key Selling Points: Multi Color Marketing Type: Hot Product 2019
Machinery Test Report: Not Available Video Outgoing-inspection: Not Available
Warranty Of Core Components: 1 Year Core Components: Motor, Bearing, Pump
Product Name: A1 Size Uv Flatbed Printer Ink Type: Uv Rigid/soft Ink
Printing Material: Flat And Rotary Item Color: White+CMYK+Varnish
Application: Flat Items And Rotary Item Print Speed: High Speed
Print Head: TX800 Printing Size: 60cm*90cmcm(24*41")
Operating System: Win7, Win8, Win10 Data Interface: USB3.0 High Speed Interface Transfer System
Port: SHANGHAI/YIWU/NINGBO

Product Description

Product Application

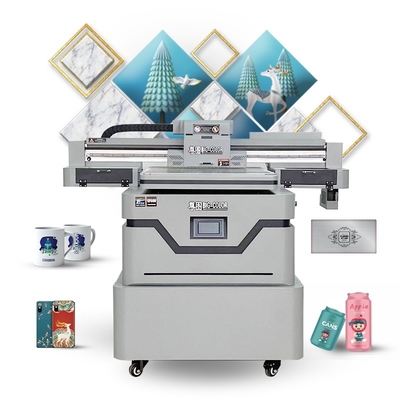

Big Color small size uv flatbed printer can print on roraty and flat material by one printer. It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

SPECIFICATIONS FOR ZT-6090
Product Name
uv6090  flatbed printer
Model
ZT6090
Printer head
3 pc 3200U1 head
Speed
7.5m2/h(Production mode)  / 5.5m2/h(Precision mode) / 4.5m2/h(High precision mode)
Maximum Resolution
720*4320 dpi
Ink
4 color +white +varnish
Printing Type
Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Machine Dimension
1.5*1.6*1.38m
packing size
1.85*1.69*1.05m=3.282
Model No
Print head
Printing area
Printing height
Speed
Color
6090-dx8
3 pcs Epson DX8
600*900mm
250mm
4.5m²/h
CMYK+W+V
6090-dx8
3 pcs Epson xp600
600*900mm
250mm
4.5m²/h
CMYK+W+V
6090-4720
3 pcs Epson 4720
600*900mm
250mm
7.5m²/h
CMYK+W+V
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 0
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 1
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 2
                                                                Table type also available

Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 3
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 4
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 5
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 6
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 7
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 8
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 9
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 10
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 11
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 12
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 13

Different head optional for different request

3200 head:
higher head cost, but faster printing speed
it is fit for printing factory choose
DX8 head:
Lower head cost, but speed slower than 3200 head
it is fit for home work usage
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 14
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 15

Main Features

1) Not only can print on flatbed material but also can printer cylinders.

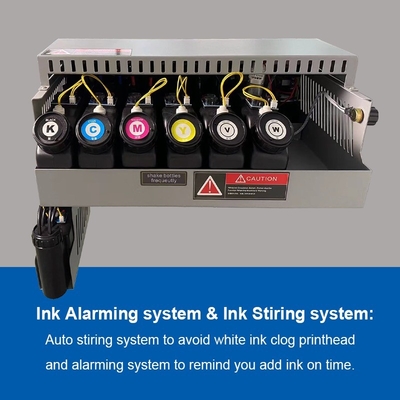

2) Automatic stirring system for white ink and lacking ink alarming system.

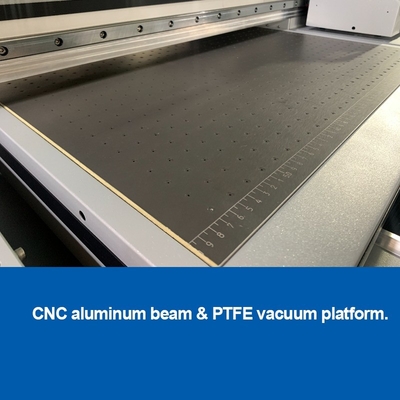

3) PTFE cellular flatform,durable and stable.

4) Carriage height could reach to 250mm ,and it can work on 3 heads by varnish+white+color or even 4 heads.

5) Support for multiple printing on same picture by one time,fit for most special production request .

6) Our Big color have focus on printer research manufacture for more than 10 yeas, we also work on OEM printing machine. so we could also give you best suggestion and solution for your printing request if you need.


Our Exhibition
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 16
Our Factory
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 17
Certifications
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 18
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 19
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 20
Samples Display
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 21








Wine bottle







leather

sheath
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 22
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 23






Phone case








   Mug or cup


Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 24
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 25
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 26
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 27
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 28
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 29
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 30
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 31
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 32
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 33
Related Products
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 34

UV DTF FILM

91.8% Response Rate

Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 35

DTF PRINTER for 30cm

91.8% Response Rate

Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 36

A2/A3 uv flatbed printer

91.8% Response Rate

Our Service
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 37

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 38

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 39
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 40
Packing & Delivery
Multi Color UV Flatbed Printer with Print Dimension 60cm*90cmcm 24*41" and Heads 41
Packaging
Size
 2.56*1.44*1.50M=5.53CBM
Weight
0.38 T



Packaging
Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
